OCS Reset Procedure

You should perform OCS Reset procedure after service or replacement about all part of the passenger seat. (Not included full seat assembly)

1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF", select Airbag system and "Body Sensor Reset" mode.

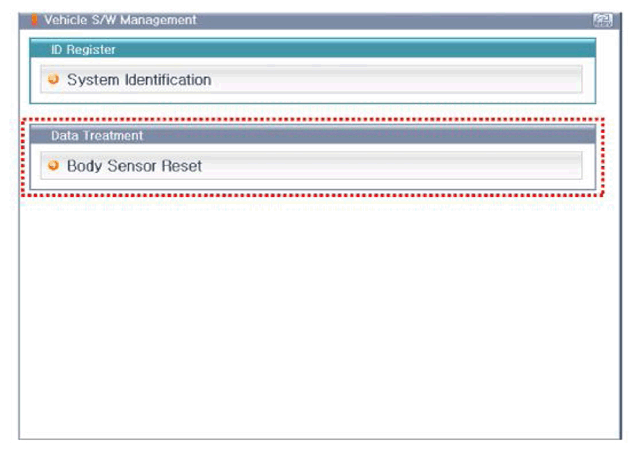

   Fig 1: Screen Display - Body Sensor Reset

   Courtesy of HYUNDAI MOTOR AMERICA
3. The GDS will show the two OCS Reset function steps.
   1. Erase OCS diagnostic codes.
   2. OCS initialization.

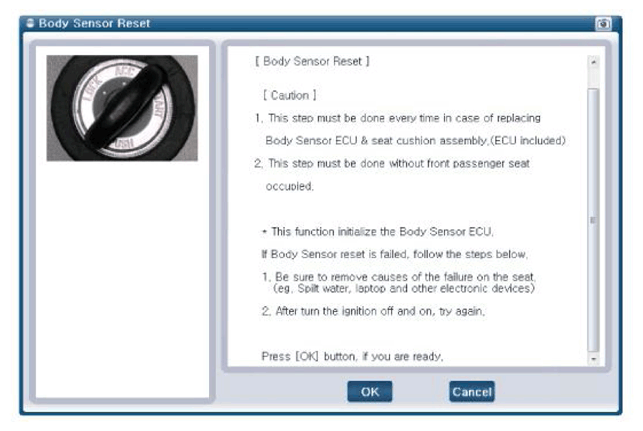

   Fig 2: Screen Display - Body Sensor Reset

   Courtesy of HYUNDAI MOTOR AMERICA
   CAUTION:

   • This Step must be done during front passenger seat empty.
4. Select product configuration.
   1. C1: No heater
   2. C2: Heater

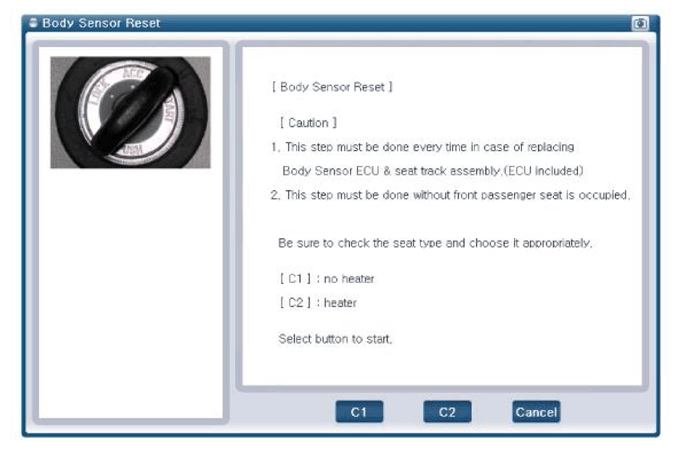

   Fig 3: Screen Display - Body Sensor Reset

   Courtesy of HYUNDAI MOTOR AMERICA
   CAUTION:

   • Before the starting the OCS Rest process, cross check seat correct configuration with actual vehicle.
   • If you view the center console, you can find different buttons per each different seat configuration type. (Refer to the below Image)

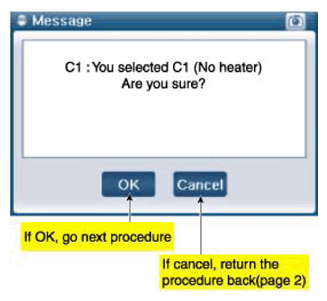

   Fig 4: Screen Display - Message

   Courtesy of HYUNDAI MOTOR AMERICA
5. The OCS initialization procedure will be performed.

   C1: No Heater Type Reset

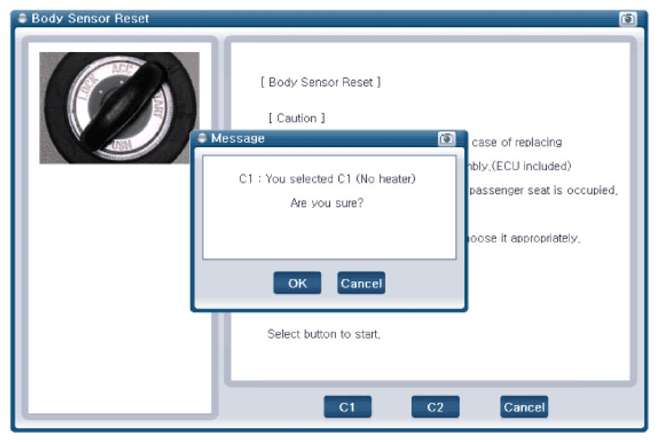

Fig 5: Screen Display - Body Sensor Reset (No Heater Type Reset; 1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

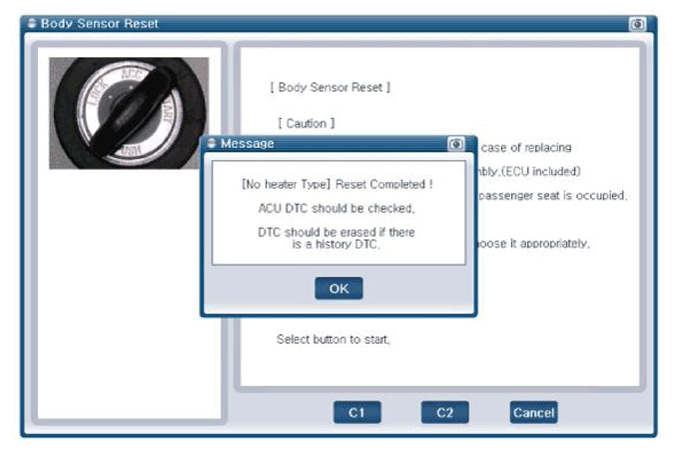

Fig 6: Screen Display - Body Sensor Reset (No Heater Type Reset; 2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

C2: Heater Type Reset (Including Cooling Seat)

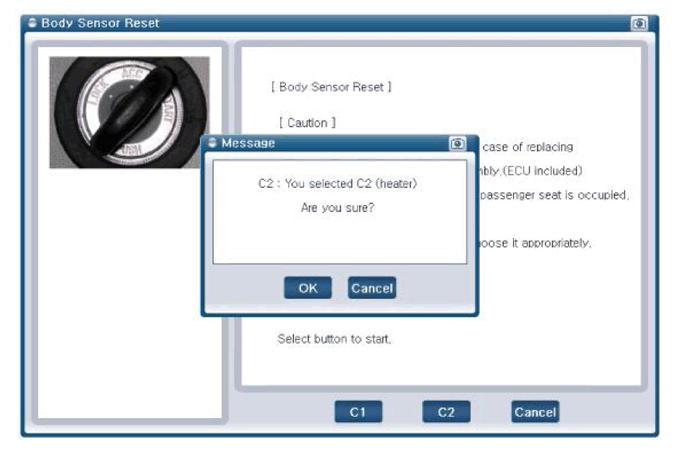

Fig 7: Screen Display - Body Sensor Reset (Heater Type Reset; 1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Screen Display - Body Sensor Reset (Heater Type Reset; 2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
