Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Removal of the airbag must be performed according to the precautions/procedures described previously.
  • Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the engine cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

  3. Disconnect the front impact sensor connector (A).

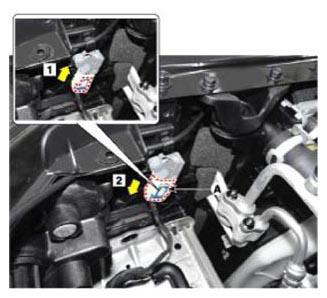

    Fig 1: Removing Front Impact Sensor
    G11407774Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the front impact sensor (A) after loosening the mounting bolt.

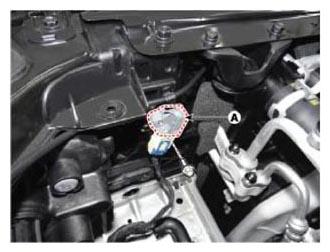

    Fig 2: Removing Front Impact Sensor With Bolt
    G11407775Courtesy of HYUNDAI MOTOR AMERICA
