Component Location

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

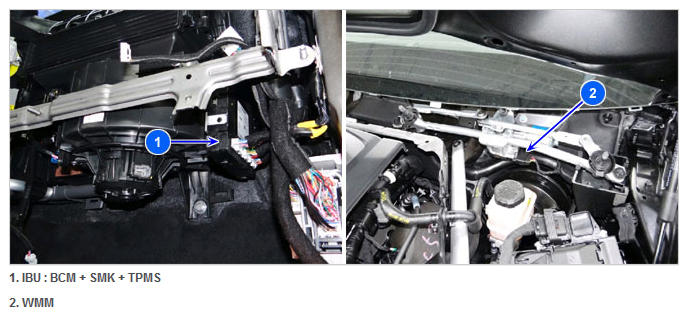

Fig 1: Locating IBU: BCM + SMK + TPMS And WMM Components
G11411072Courtesy of HYUNDAI MOTOR AMERICA
NOTE: IBU (Integrated Body control Unit): "IBU CONTROL MODULE"
BCM: Body Control Module
SMK: Smart Key Control Module
TPMS: Tire Pressure Monitoring System module
WMM (Wiper Motor Module): "WIPER MOTOR"
