Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. Input oil-pressure characteristics received backup in new TCM.

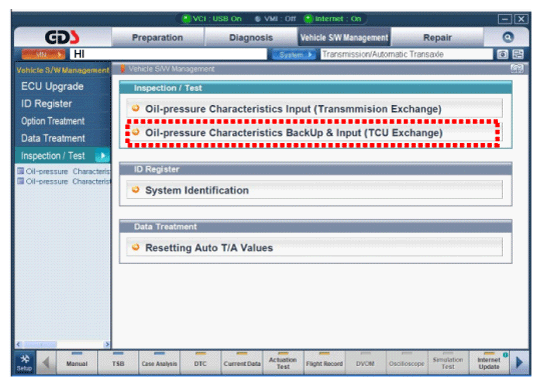

    G12657899Courtesy of HYUNDAI MOTOR AMERICA

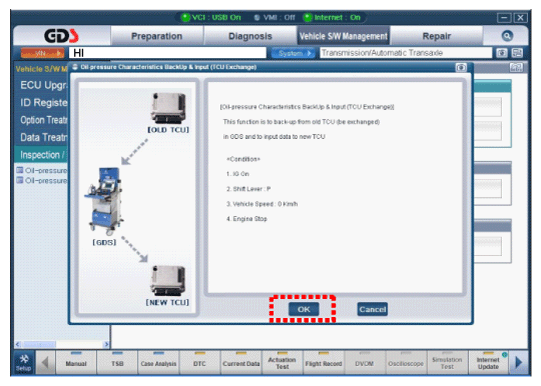

    G12657900Courtesy of HYUNDAI MOTOR AMERICA

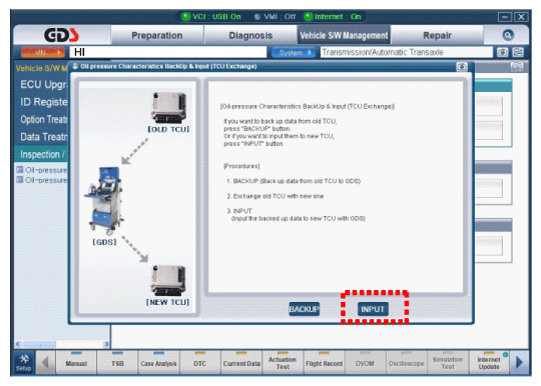

    G12657901Courtesy of HYUNDAI MOTOR AMERICA

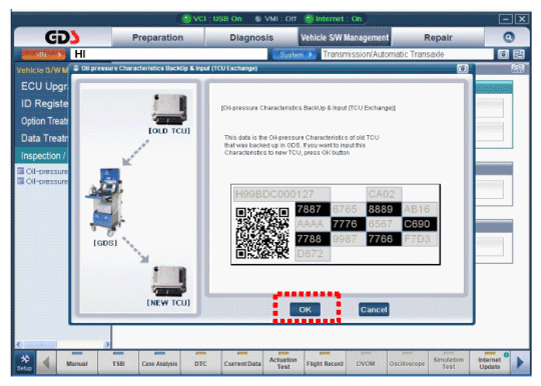

    G12657902Courtesy of HYUNDAI MOTOR AMERICA

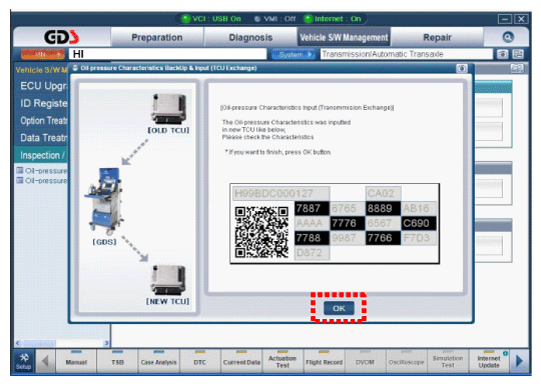

    G12657903Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the TCM Adaptive Values Learning Procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
