Components And Components Location: Components

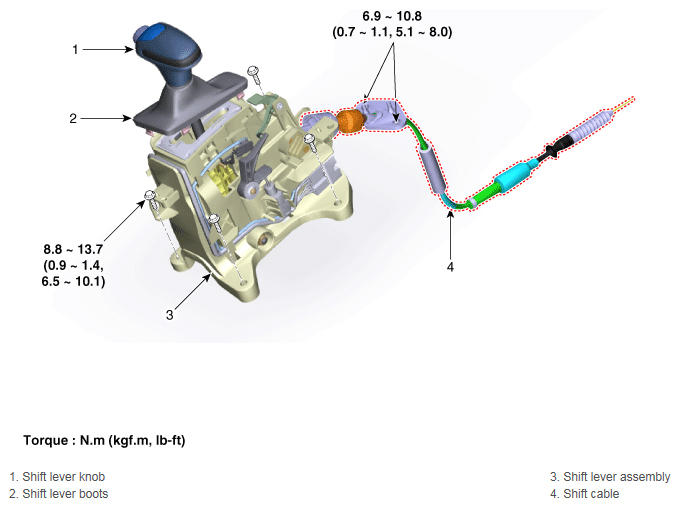

Fig 1: Locating Shift Cable Components With Torque Specification

G12658137

Courtesy of HYUNDAI MOTOR AMERICA
