Signal Waveform & Data

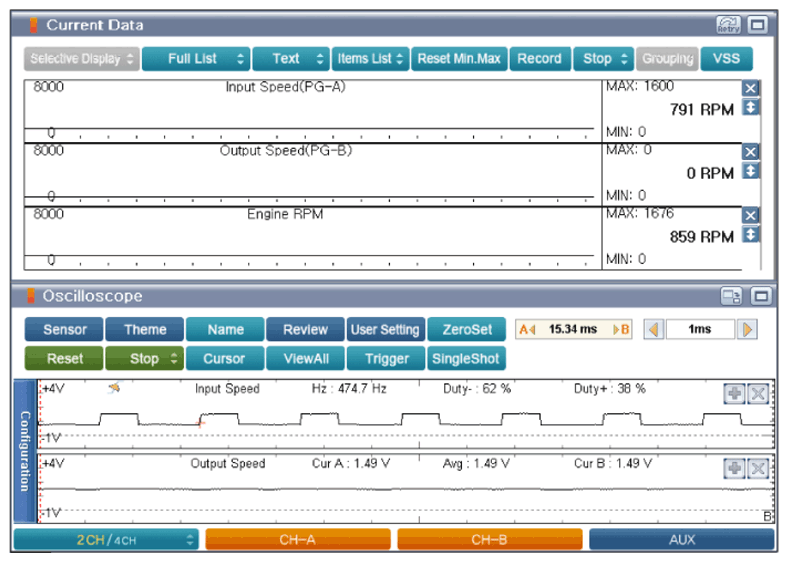

G12653271Courtesy of HYUNDAI MOTOR AMERICA

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%

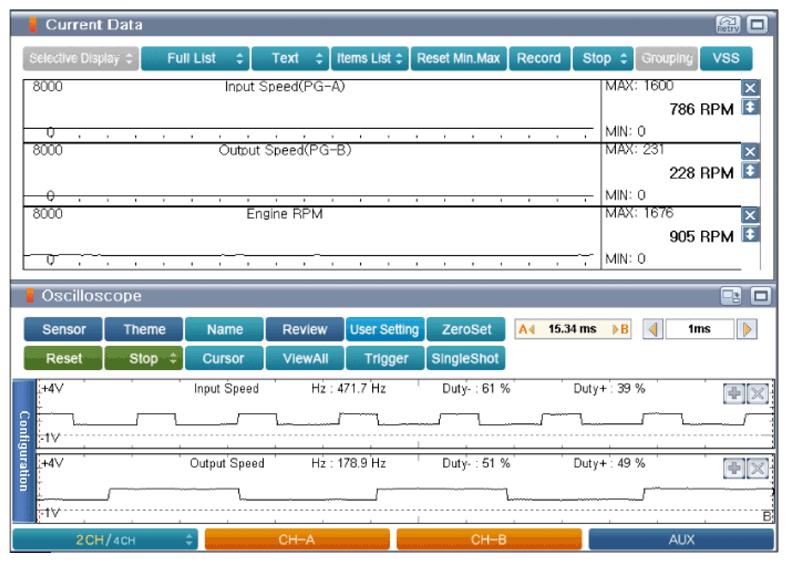

G12653272Courtesy of HYUNDAI MOTOR AMERICA

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%
