Home >> Genesis >> 2019 >> G70 3.3T Design, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 3.3L >> Valve Body >> Components and Components Location >> Components

Components and Components Location: Components

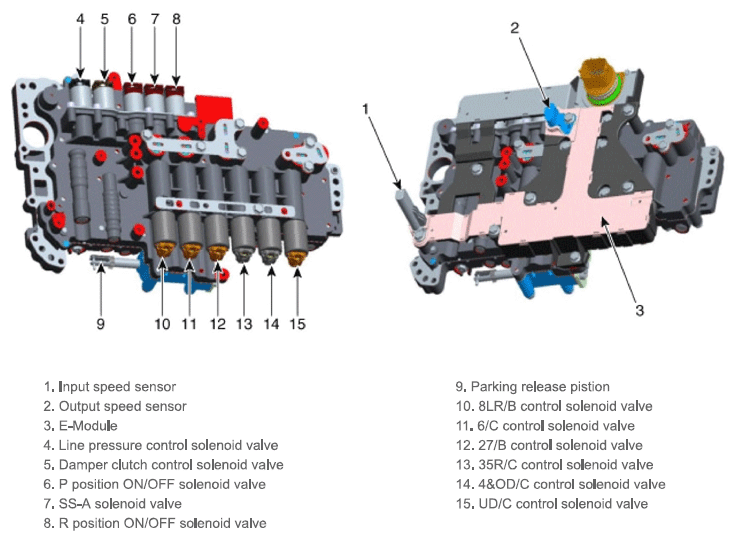

G13543628

Courtesy of HYUNDAI MOTOR AMERICA
