Components & Components Location: Components

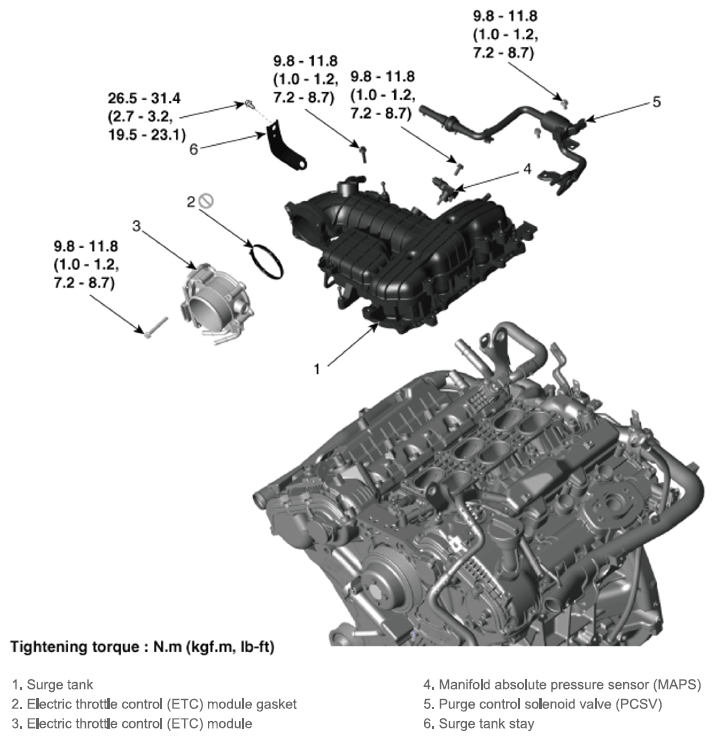

Fig 1: Surge Tank Components Location With Torque Specification

G13543018

Courtesy of HYUNDAI MOTOR AMERICA
