Home >> Genesis >> 2019 >> G70 3.3T Design, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 3.3L >> Intercooler >> Components & Components Location >> Components

Components & Components Location: Components

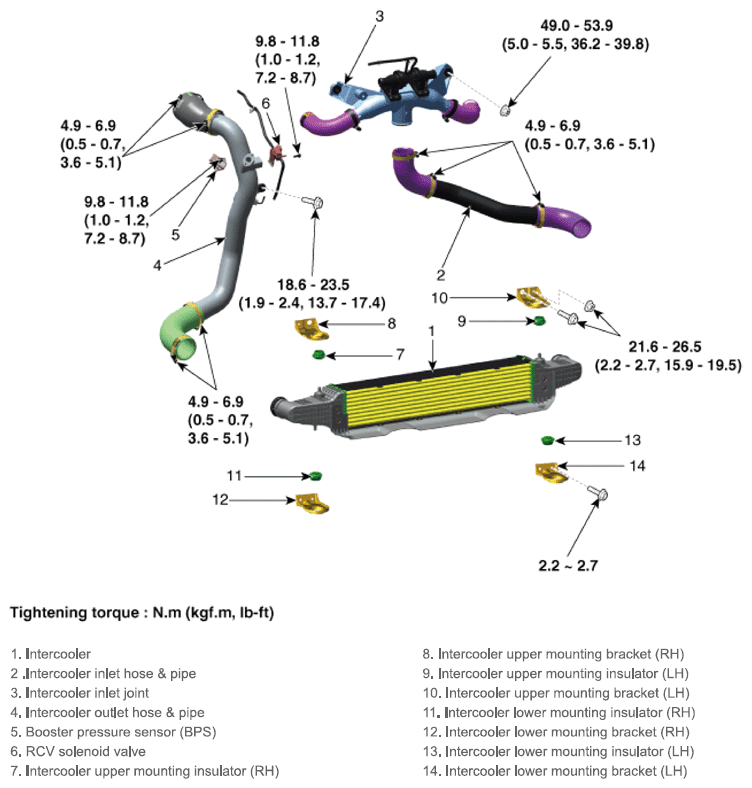

Fig 1: Intercooler Components Location With Torque Specification

G13543028

Courtesy of HYUNDAI MOTOR AMERICA
