Components & Components Location: Components

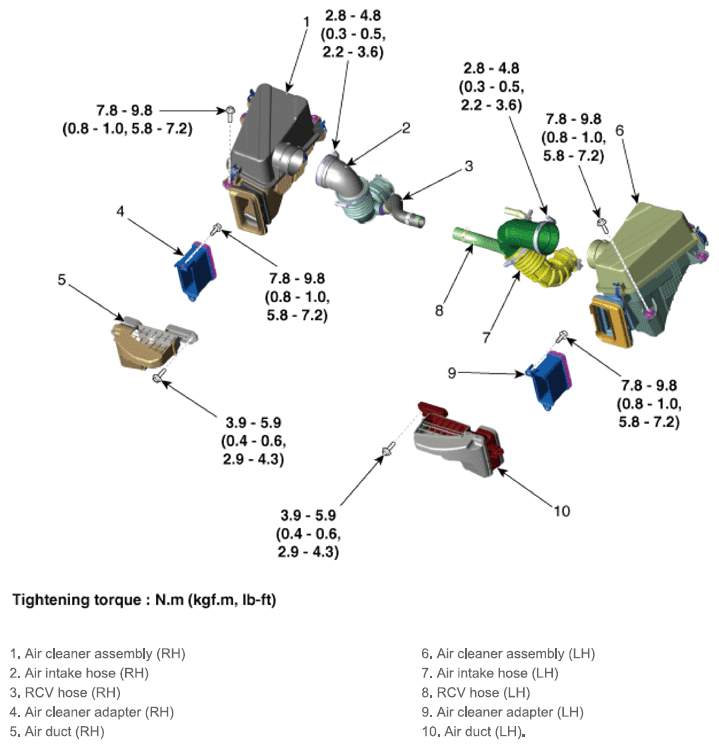

Fig 1: Air Cleaner Components Location With Torque Specification

G13543004

Courtesy of HYUNDAI MOTOR AMERICA
