Service Data Analysis
- Self-diagnostic connector of the vehicle is connected to the GDS.
- Engine ON.

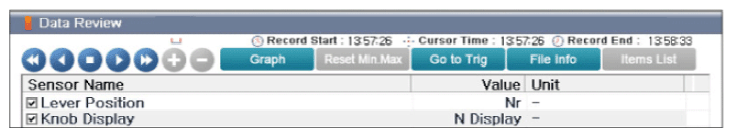

- Select the "Current Data".
- Select "knob display" on the current data and check the is proper.
- Check whether the "knob state" is normal?
YES
- After a repair, when the active code were not erased or may be due to temporary malfunctioning of poor contact of the power side.
Overall, check the connector for loose, poor contact, bending, corrosion, contamination, alteration, or damage.
- Repair or replace if necessary. Go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next procedure.
- After a repair, when the active code were not erased or may be due to temporary malfunctioning of poor contact of the power side.
