Freeze Frame Data Analysis
- Self-diagnostic connector of the vehicle is connected to the GDS.
- Engine ON.
- Press "Diagnostic Trouble Codes (DTC)" button after selecting system and select the Freeze Frame data button in order to check DTC Information.

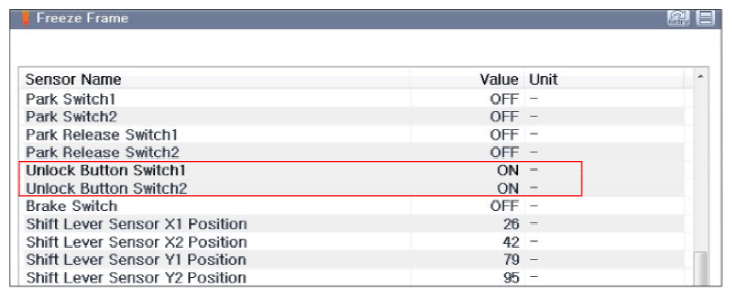

- Check "unlock button switch1, unlock button switch 2" of the Freeze Frame data.
Normal value : OFF (switch 1/2 matches)
- Is the state of "unlock button switch1, unlock button switch 2" normal?
YES
- After a repair, when the active code were not erased or may be due to temporary malfunctioning of poor contact of the power side.
Overall, check the connector for loose, poor contact, bending, corrosion, contamination, alteration, or damage.
- Repair or replace if necessary, Go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next procedure.
- After a repair, when the active code were not erased or may be due to temporary malfunctioning of poor contact of the power side.
