Service Data Analysis
- Connect the GDS to the vehicle's DLC connector.
- Engine ON.

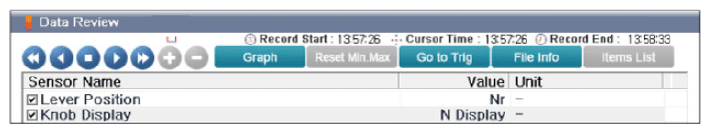

- Select the "Current Data".
- Check the change of "lever position" valve by moving the lever.
Normal value : See the reference waveform
- Is the sensor output measured normally?
YES
- After a repair, when the active code were not erased or may be due to temporary malfunctioning of poor contact of the power side.
Overall, check the connector for loose, poor contact, bending, corrosion, contamination, alteration, or damage.
- Repair or replace if necessary. Go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure replacing E-SHIFTER.
- After a repair, when the active code were not erased or may be due to temporary malfunctioning of poor contact of the power side.
