Repair Procedures: Removal
CAUTION:
- Removal of the airbag must be performed according to the precautions/procedures described previously.
- Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

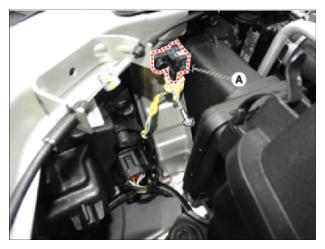

- Disconnect the front impact sensor connector (A).
Loosen the nuts to remove the front impact sensor (B).

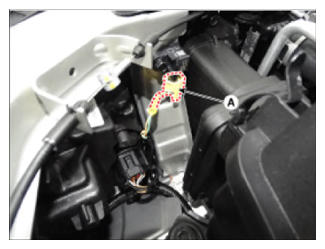

- Disconnect the front impact sensor connector (A).
- Loosen the nuts and then remove the front impact sensor (A).
