Home >> Genesis >> 2019 >> G70 2.0T Advanced, AWD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System Control Module (SRSCM) And Sensors >> Components & Components Location >> Components

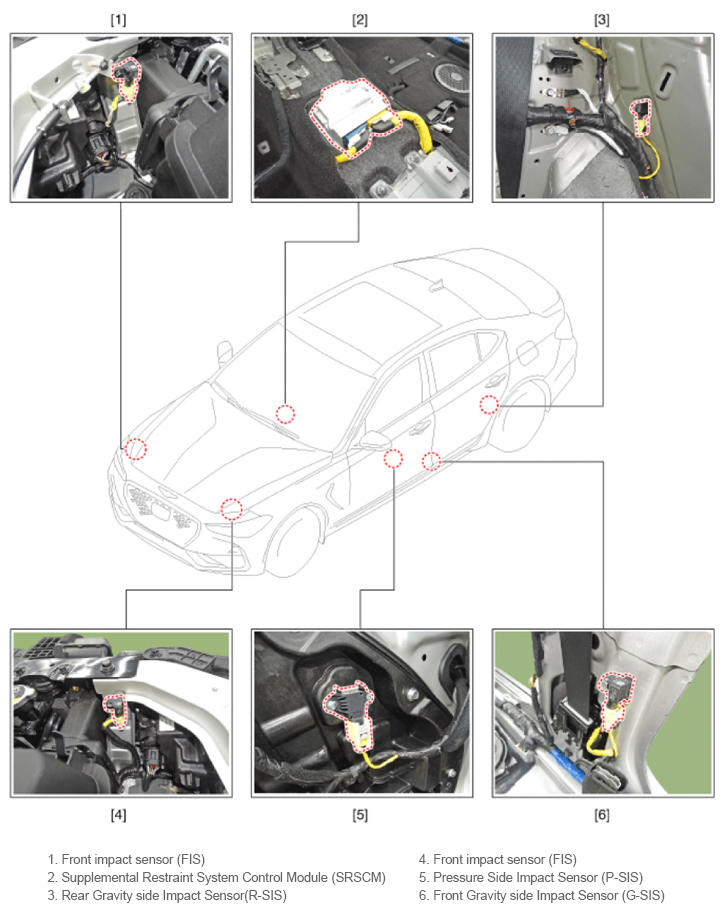

Components & Components Location: Components

G13540709

Courtesy of HYUNDAI MOTOR AMERICA
