Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing cover.

    (Refer to Crash Pad - "GLOVE BOX HOUSING COVER ASSEMBLY ")

  3. Remove the heater control unit (B) after loosening the screws.
    G13542528Courtesy of HYUNDAI MOTOR AMERICA

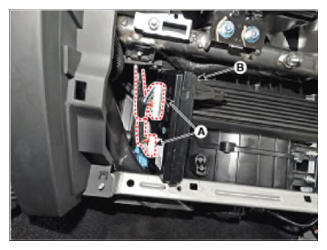

  4. Disconnect the connector (A) and then remove the heater control unit (B).
    G13542529Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
