Components & Components Location: Components

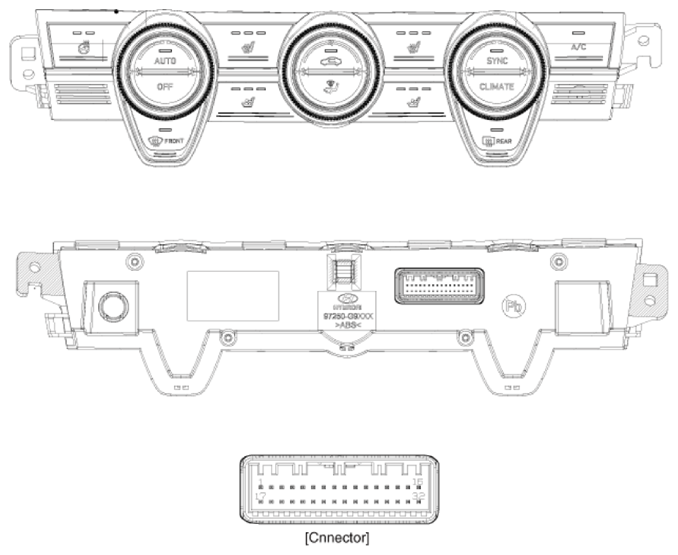

CONNECTOR PIN FUNCTION DESCRIPTION
| Pin NO | Function |
|---|---|
| 1 | Battery (+) |
| 2 | ILL+(TAIL) |
| 3 | - |
| 4 | LIN BUS |
| 5 | Steering wheel heat indicator (LOW) |
| 6 | HTD |
| 7 | Rear Defogging Switch |
| 8 | Driver's seat heat switch |
| 9 | Passenger's seat heat switch |
| 10 | Driver's seat cool switch |
| 11 | Passenger's seat cool switch |
| 12 | Passenger's seat cool indicator (LOW) |
| 13 | Passenger's seat cool indicator (MID) |
| 14 | Passenger's seat cool indicator (HIGH) |
| 15 | - |
| 16 | ILL- (RHEO) |
| 17 | IGN2 |
| 18 | ISG B+ |
| 19 | IGN1 |
| 20 | Steering wheel heat indicator (HIGH) |
| 21 | Steering wheel heat switch |
| 22 | Detent Out (-) |
| 23 | Driver's seat heat indicator (LOW) |
| 24 | Driver's seat heat indicator (MID) |
| 25 | Driver's seat heat indicator (HIGH) |
| 26 | Passenger's seat heat indicator (LOW) |
| 27 | Passenger's seat heat indicator (MID) |
| 28 | Passenger's seat heat indicator (HIGH) |
| 29 | Driver's seat cool indicator (LOW) |
| 30 | Driver's seat cool indicator (MID) |
| 31 | Driver's seat cool indicator (HIGH) |
| 32 | Ground |
