EWGA Inspection

Monitor "Current Data". during actuating EWGA "Actuation Test".

Visually check the position of the EWGA during activation referring to below figures.

Specification:

Position	Output Voltage [V]	Operating Angle [°]	Lift [mm]
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	3.8	25.6	2.2
Electrical Open end stop Position (EOP)	1	97.2	16.55
Mechanical Open end stop Position (MOP)	0.5	110	19.2

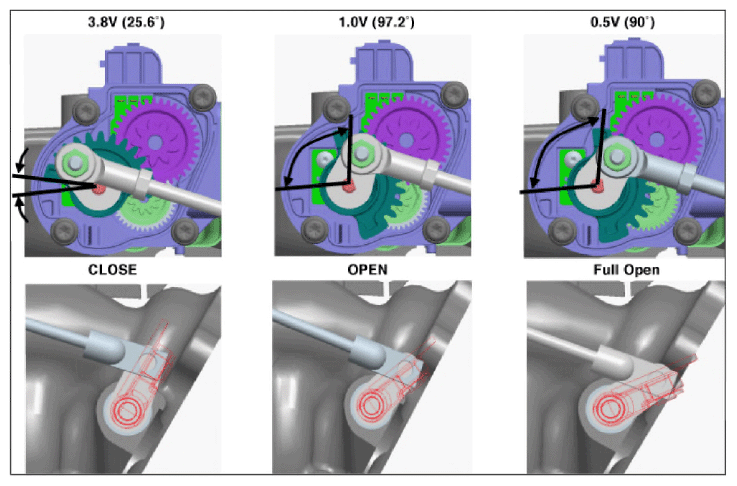

G13544694

Courtesy of HYUNDAI MOTOR AMERICA

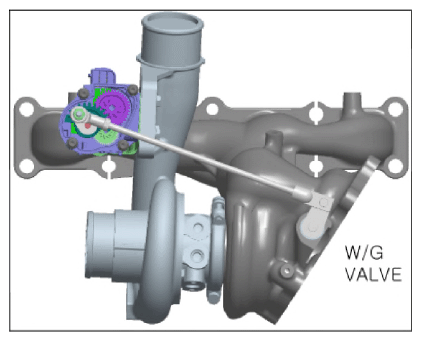

G13544695

Courtesy of HYUNDAI MOTOR AMERICA

Is parameter displayed within specifications?
YES
- Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good EWGA and check for proper operation. If the problem is corrected, replace EWGA and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
