Flow Diagram

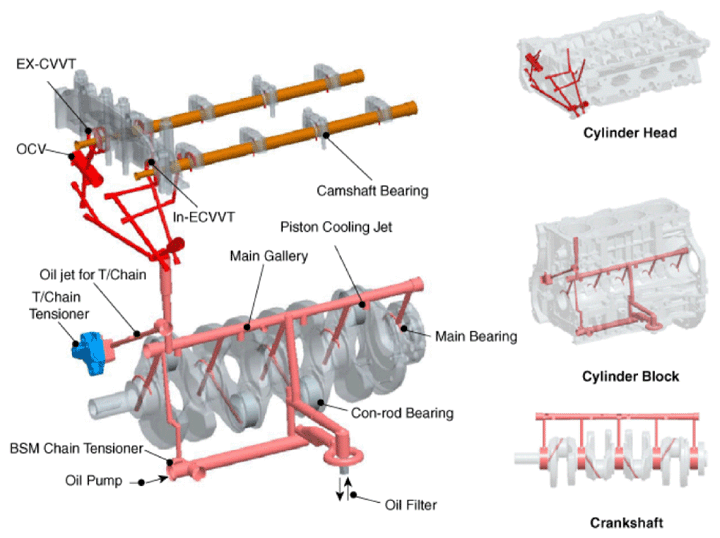

G13538944

Courtesy of HYUNDAI MOTOR AMERICA

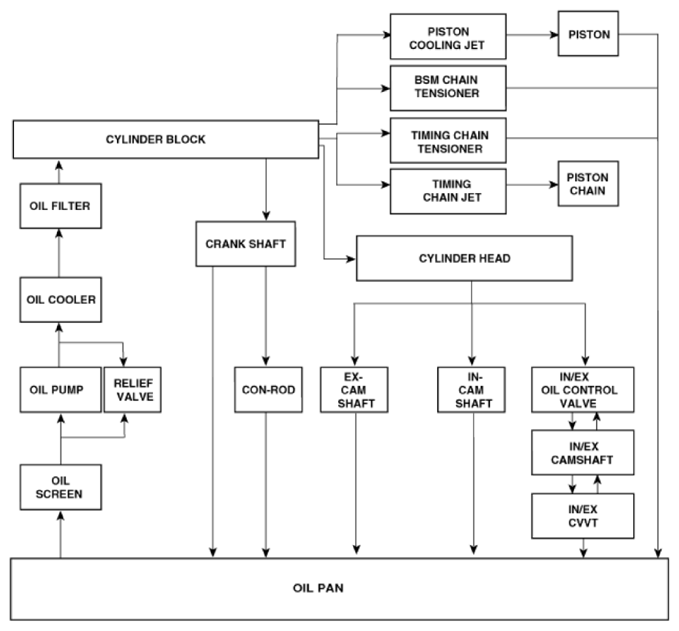

G13538945

Courtesy of HYUNDAI MOTOR AMERICA
