Components & Components Location: Components

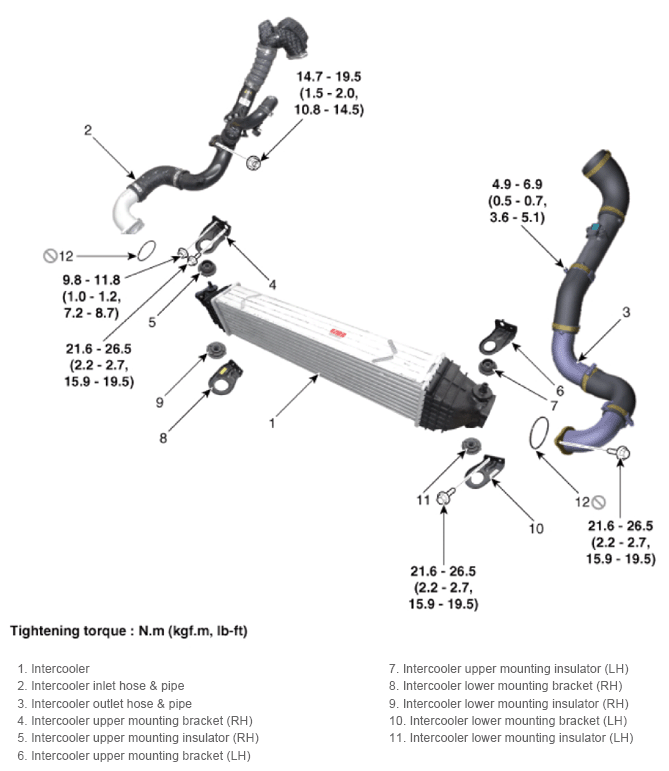

Fig 1: Intercooler Components Location With Torque Specification

G13539010

Courtesy of HYUNDAI MOTOR AMERICA
