GDS Data Analysis

  1. Start the engine.
  2. Plug GDS to Data Link Connector (DLC) and select the "Current Data".

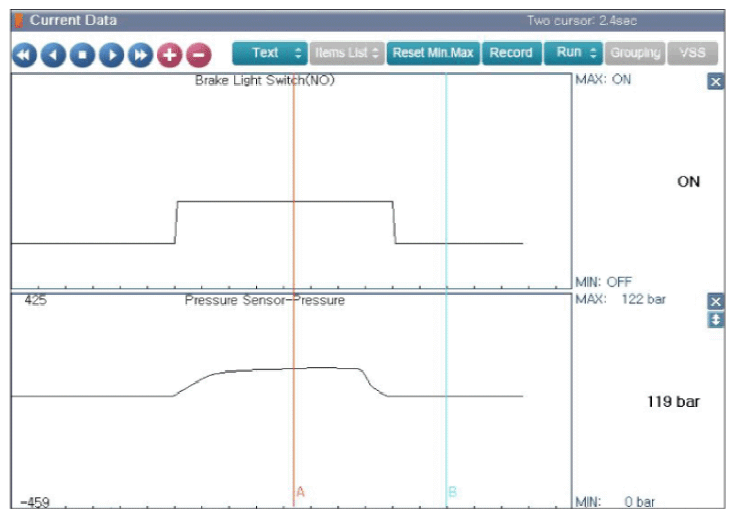

  3. Monitor the "PRESSURE SENSOR" parameter on the "Current Data" menu of the GDS.
    G13544446Courtesy of HYUNDAI MOTOR AMERICA
  4. Whenever brake pedal is pushed down, is the pressure sensor's GDS data changed?

    YES

    • Fault can be caused by poor connection or when ESP (ESC) memory was not cleared after it was repaired. Clear the DTC and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next step.
