DTC C1204-02: Wheel Speed Sensor Front-RH Range/Performance/Intermittent
>>
Specification
>>

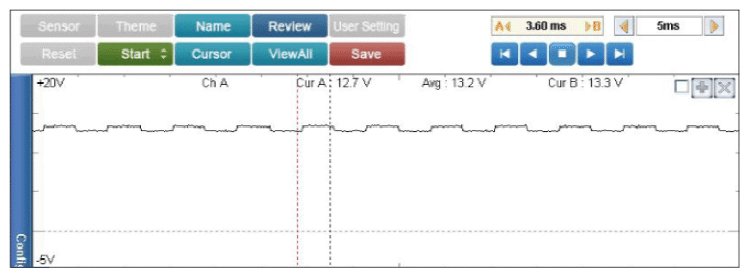

Signal Waveform And Data
Signal Waveform And Data
Courtesy of HYUNDAI MOTOR AMERICA
High: Approximately 13.3 V, Low: Approximately 12.7V
Courtesy of HYUNDAI MOTOR AMERICA
