Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
Information
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the trunk lid weatherstrip.
(Refer to Trunk Lid - "TRUNK LID WEATHERSTRIP ")

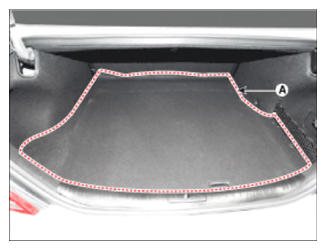

- Remove the luggage board (A).

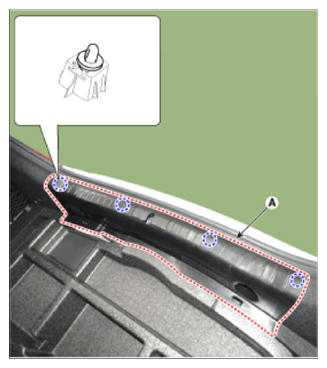

- Loosen the mounting clips and remove the rear transverse trim (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
