Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
- Remove the paddle shift switch.
(Refer to Steering System - "STEERING WHEEL ")

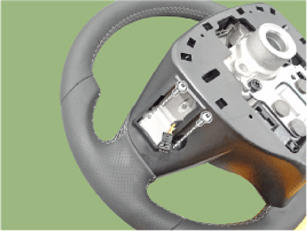

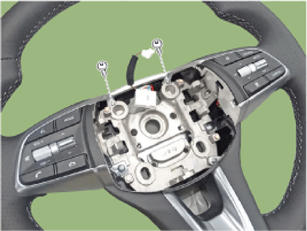

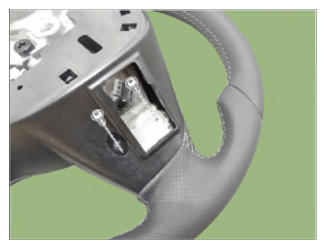

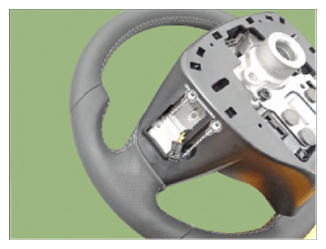

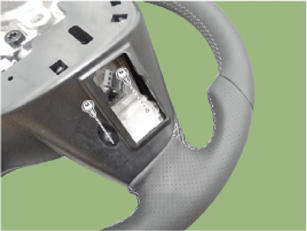

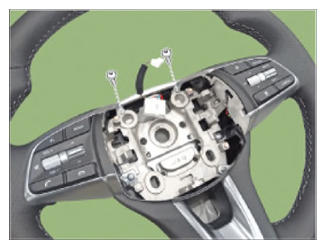

- Remove the screws from the steering cover.
[Rear]
[Front]

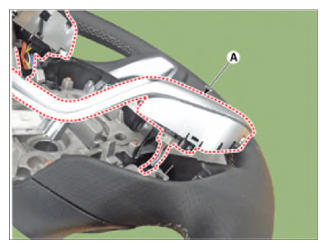

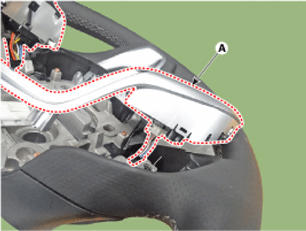

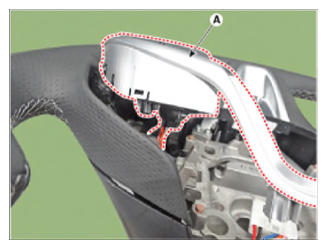

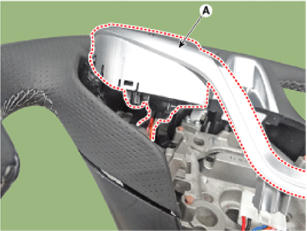

- Remove the steering remote control switch (A) after disconnecting the connector.
