Repair Procedures: Replacement

Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")
Remove the front door outside handle.
(Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

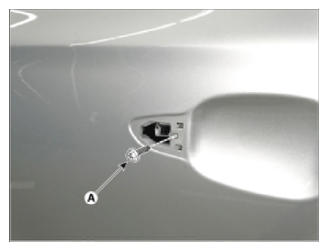

Loosen the front door outside handle base mounting bolt (A).
Tightening torque:

2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

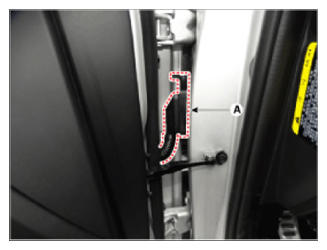

Disconnect the front door main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

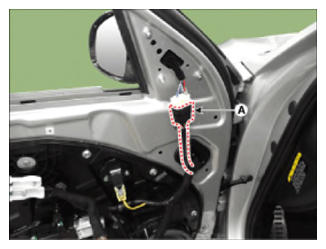

Disconnect the outside rear view mirror connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

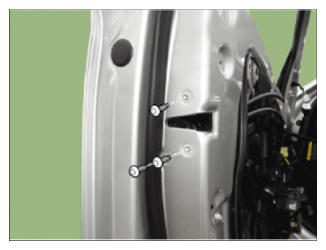

Loosen the front door latch mounting screws.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

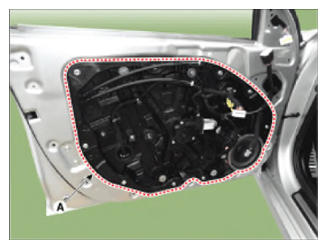

Loosen the mounting bolts and remove the front door module (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 8.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

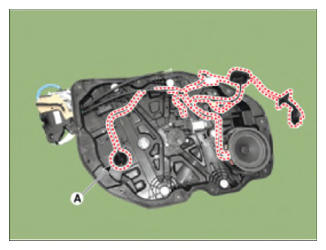

Disconnect the connectors and front door module wiring harness (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door latch assembly.
(Refer to Front Door - "FRONT DOOR LATCH ")
Remove the front speaker.
(Refer to Body Electrical System - "SPEAKERS ")
Remove the front power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
To install, reverse the removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
