Trunk Lock Module Inspection

  1. Disconnect the battery (-) terminals.
  2. Remove the Trunk lid trim

    (Refer to Body - "TRUNK LID TRIM ")

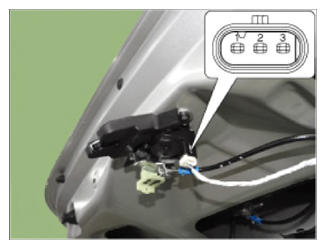

  3. Disconnect the connectors from the actuator.
    G13541764Courtesy of HYUNDAI MOTOR AMERICA
  4. Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
G13541765Courtesy of HYUNDAI MOTOR AMERICA
G13541766Courtesy of HYUNDAI MOTOR AMERICA
