Front Keyboard Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

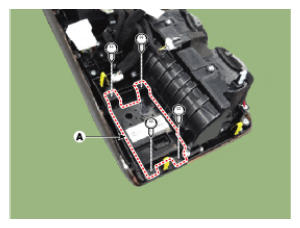

  3. Remove the front integrated controller (A) after loosening the mounting screws.
    G12665185Courtesy of HYUNDAI MOTOR AMERICA
