OCS Reset Procedure

You should perform OCS Reset procedure after service or replacement about all part of the passenger seat. (Not included full seat assembly)

1. Ignition "OFF", connect GDS.

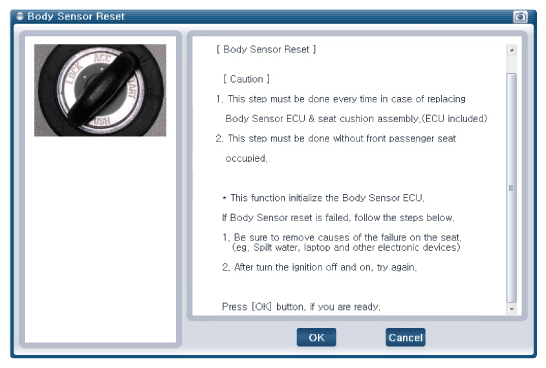

2. Ignition "ON" & Engine "OFF", select Airbag system and "Body sensor Reset" mode.

   Courtesy of HYUNDAI MOTOR AMERICA

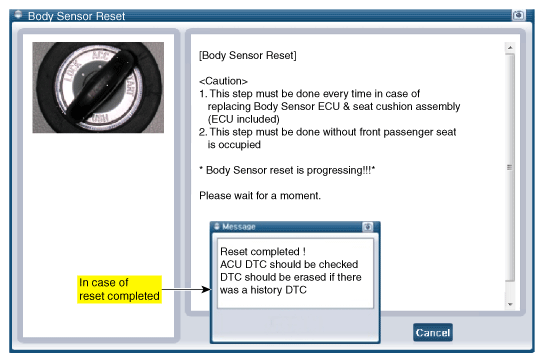

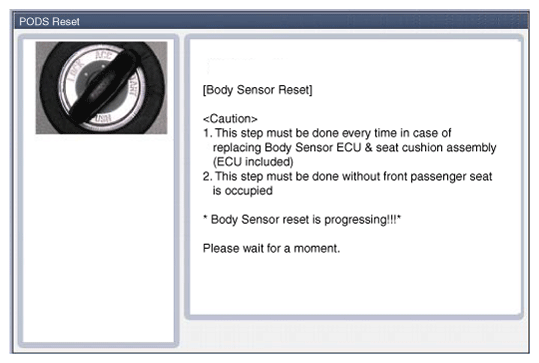

3. The GDS will show the two OCS Reset function steps.
   1. Erase OCS diagnostic codes.
   2. OCS initialization.

      Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

   • This Step must be done during front passenger seat empty.

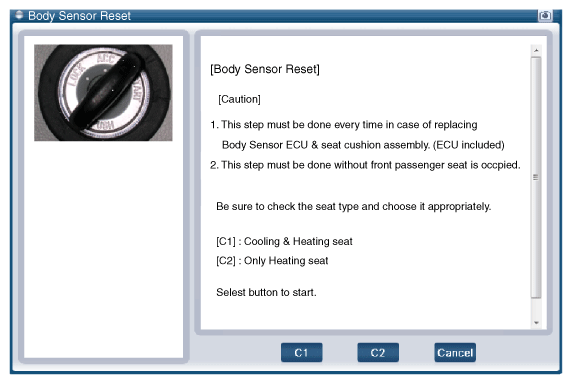

4. Select product configuration.

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

   • Be careful that if you input wrong specification, it may not work.

     Item	Description	Remarks
     Cooling & Heating seat	Select C1	Ventilation
     Only heating seat	Select C2	Heating mat

   • Before the starting the OCS Rest process, cross check seat correct configuration with actual vehicle.
   • If you see the center console, you can find different buttons per each different seat configuration type. (Refer to the below picture)

     Courtesy of HYUNDAI MOTOR AMERICA

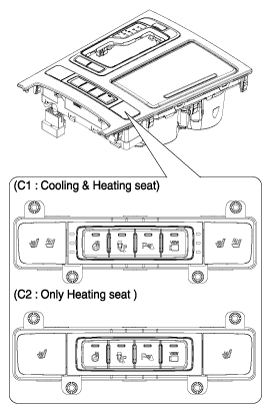

   1. Console (CCP) apply

      Courtesy of HYUNDAI MOTOR AMERICA

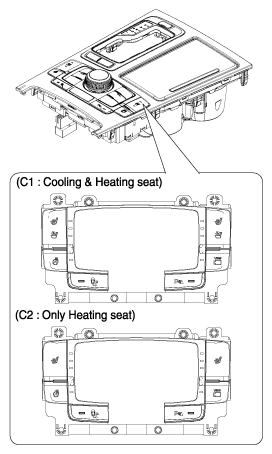

   2. Console (CCP): does not apply

      Courtesy of HYUNDAI MOTOR AMERICA

5. The OCS initialization procedure will be performed.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

   • Erase the SRSCM diagnostic codes after completing the OCS reset.

   DTC Code	Code Name	Description
   B1763	ECU Defect	Reset (Calibration setting) is not completed ECU is damaged from physical stress
   B1764	MAT Defect	Mat and ECU are not connected. Mat is damaged from physical stress.
   B1767	Algo cut-off	Too much humidity.
   B1111	IGN voltage high	IGN voltage high.
   B1112	IGN voltage low	IGN voltage low.
   B1603	CAN bus off	CAN Bus is not working.
   B1697	ACU communication error	CAN Bus is not working. ACU is not working.
