Engine Control System Diagnosis - 3.8L (3 Of 3)
>>
DTC P0620: Alternator Control Circuit
>>
Specification
>>

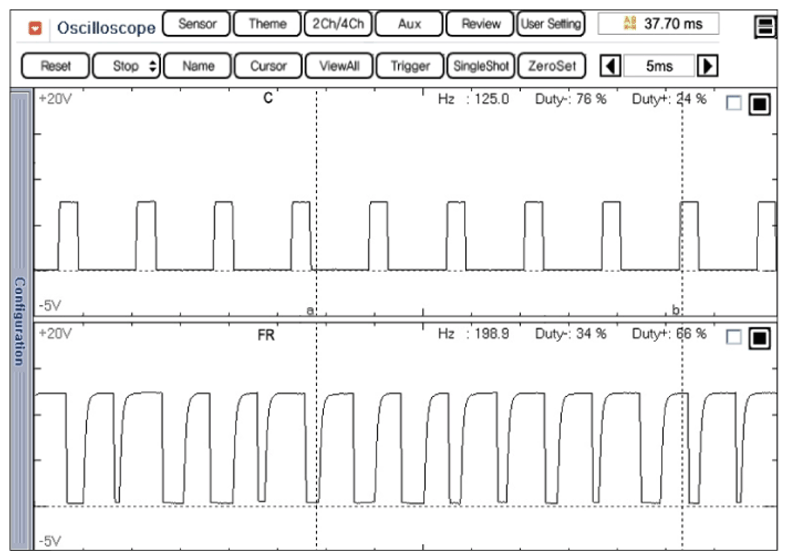

Signal Waveform & Data
Signal Waveform & Data
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA

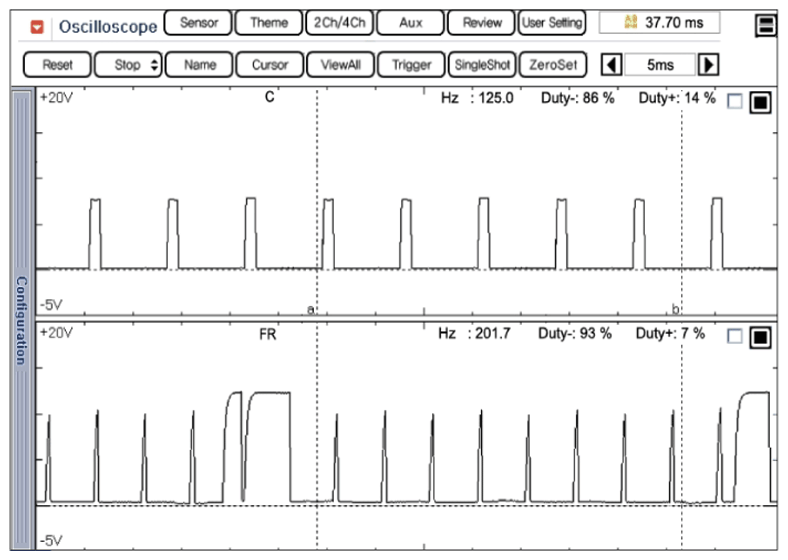

The duty (+) at FR terminal is widened when electronic load applied.
Courtesy of HYUNDAI MOTOR AMERICA
