Fuel Pump Visual Inspection

  1. Remove fuel pump assembly.

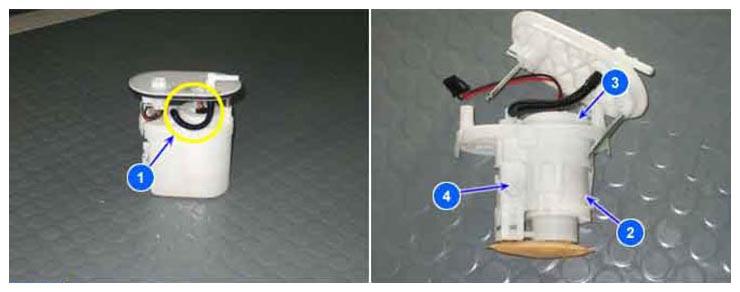

  2. Check fuel pump assembly for damage, hose clogging or distortion, blockage of fuel filter.
    G12653475Courtesy of HYUNDAI MOTOR AMERICA
    • 1-Fuel feeding hose
    • 2-Filter
    • 3-Pump Motor
    • 4-Check Valve

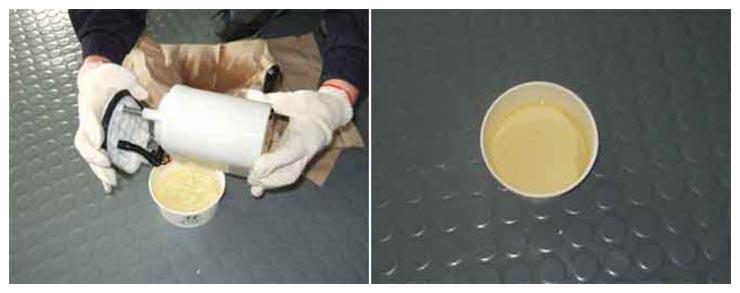

  3. Check for excessive debris in gasoline after pouring gasoline in the fuel filter into a separate container.
G12653476Courtesy of HYUNDAI MOTOR AMERICA
