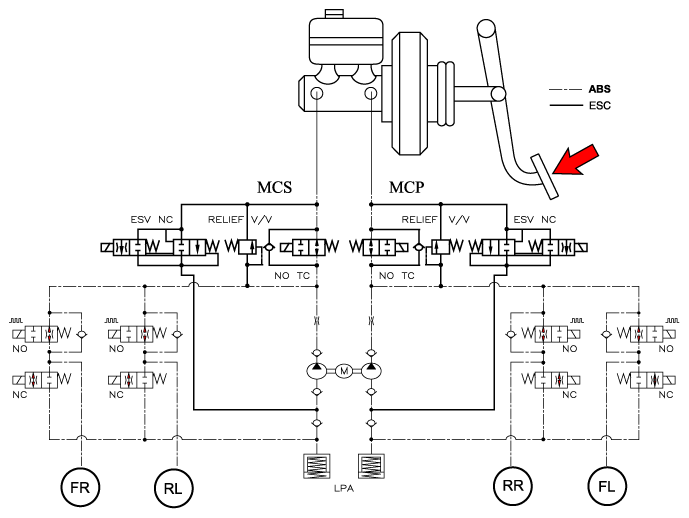

ESC Hydraulic System Diagram: Notes

G12663547Courtesy of HYUNDAI MOTOR AMERICA
  1. ESC Non-operation: Normal braking.
    Solenoid Valve Continuity Valve Motor Pump TC Valve
    IN (NO) OFF OPEN OFF OFF
    OUT (NC) OFF CLOSE
  2. ESC operation
    Solenoid Valve Continuity Valve Motor Pump TC Valve
    Under-Steering (Only inside of Rear Wheel) IN (NO) OFF OPEN ON ON
    OUT (NC) OFF CLOSE
    Over-Steering (Only outside of Front Wheel) IN (NO) OFF OPEN
    OUT (NC) OFF CLOSE
    G12663548Courtesy of HYUNDAI MOTOR AMERICA
