Components Location

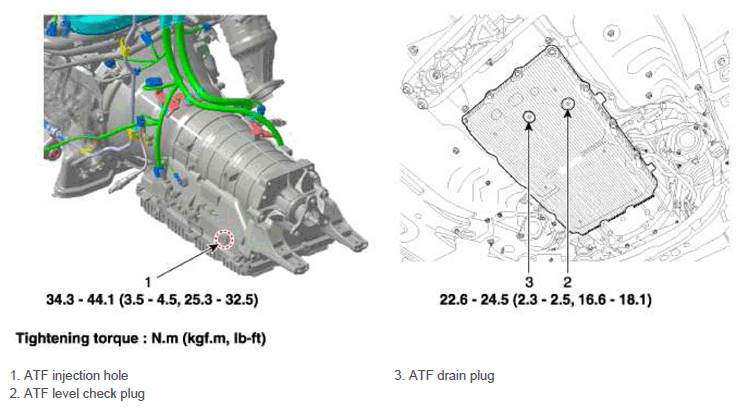

Fig 1: Locating Fluid Components With Torque Specifications

G11404570

Courtesy of HYUNDAI MOTOR AMERICA
