EOL (Oil-Pressure Characteristics) Input Procedure

NOTE:

• In case of changing the transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with GDS.
• Oil-pressure characteristics (Bar code) location.

Fig 1: Locating Oil-Pressure Characteristics Bar Code

Courtesy of HYUNDAI MOTOR AMERICA

1. In case of changing the automatic transmission assembly.
   • Perform "Oil-Pressure Characteristics Input" procedure.
   • With the Internet access (Automatic Mode): Input serial number of the transmission.
   • Without the Internet access (Manual Mode): Input the oil-pressure characteristics in the bar code.

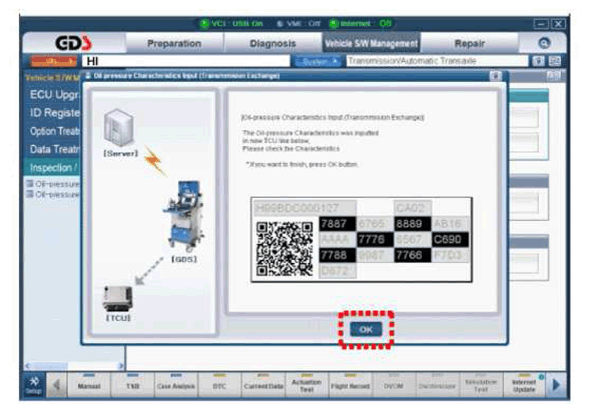

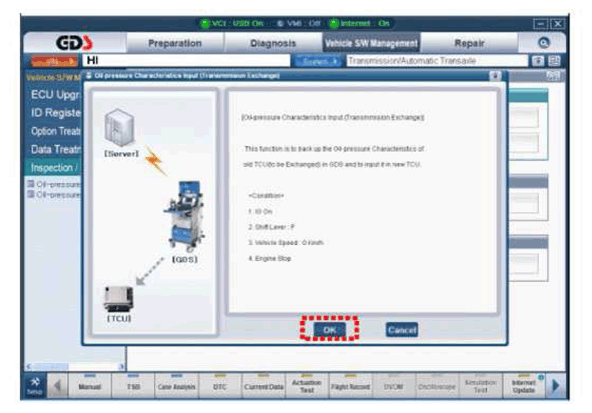

     Fig 2: Screen Display - Oil-Pressure Characteristics Input (Transmission Exchange; 1 Of 2)

     Courtesy of HYUNDAI MOTOR AMERICA

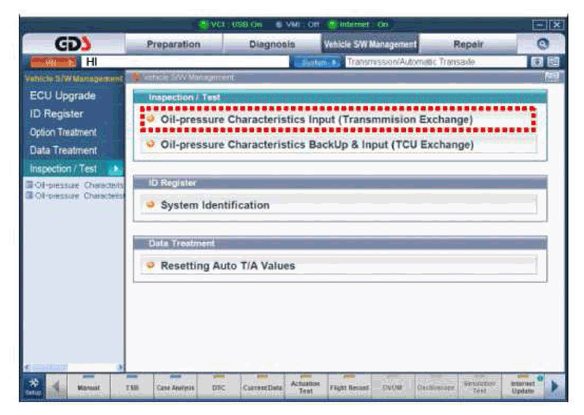

     Fig 3: Screen Display - Oil-Pressure Characteristics Input (Transmission Exchange; 2 Of 2)

     Courtesy of HYUNDAI MOTOR AMERICA
   • With the Internet access (Automatic Mode).

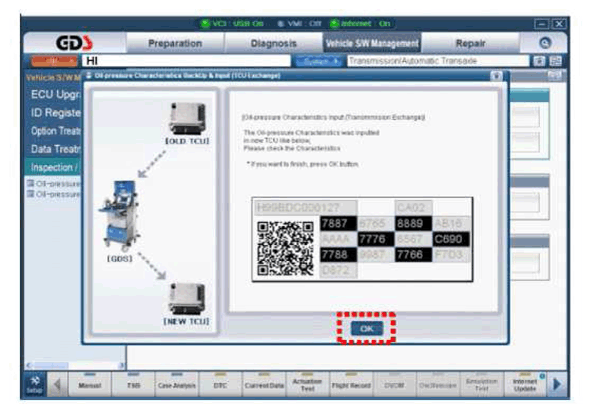

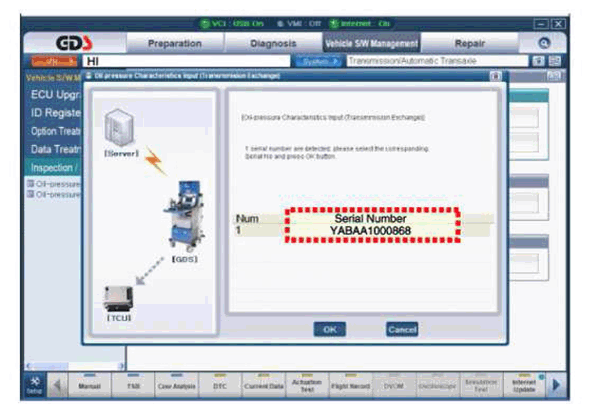

     Fig 4: Screen Display - With Internet Access (Automatic Mode; 1 Of 2)

     Courtesy of HYUNDAI MOTOR AMERICA

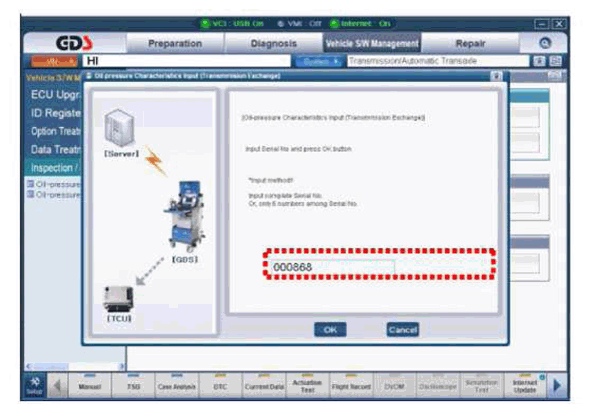

     Fig 5: Screen Display - With Internet Access (Automatic Mode; 2 Of 2)

     Courtesy of HYUNDAI MOTOR AMERICA
   • Without the Internet access (Manual Mode).

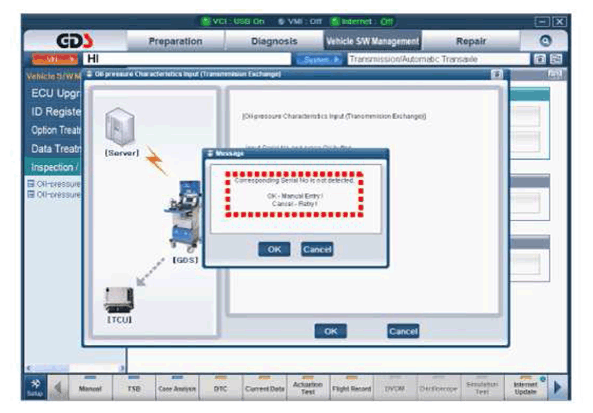

   Fig 6: Screen Display - Without Internet Access (Manual Mode; 1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 7: Screen Display - Without Internet Access (Manual Mode; 1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

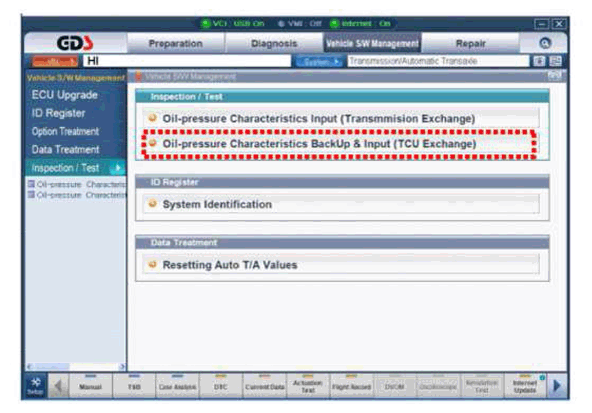

2. In case of changing the TCM.
   • Perform "Oil-Pressure Characteristics Backup & Input" procedure.

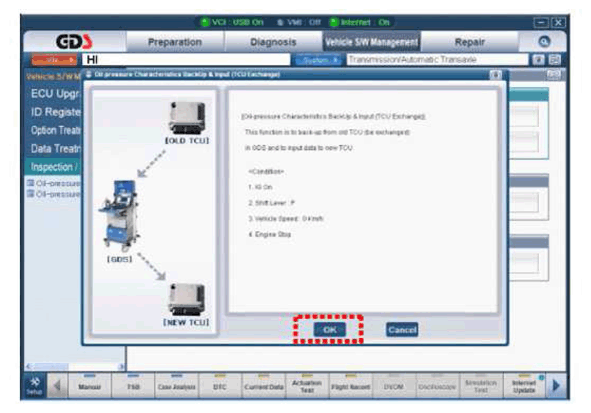

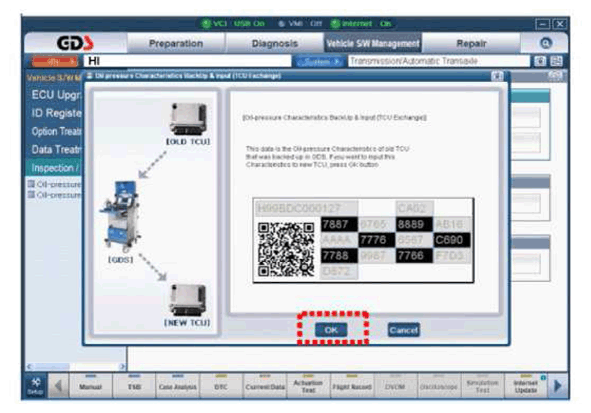

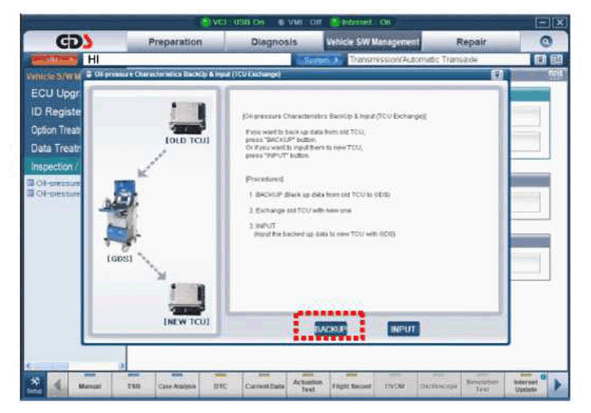

   Fig 8: Screen Display - Oil-Pressure Characteristics Backup And Input (1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

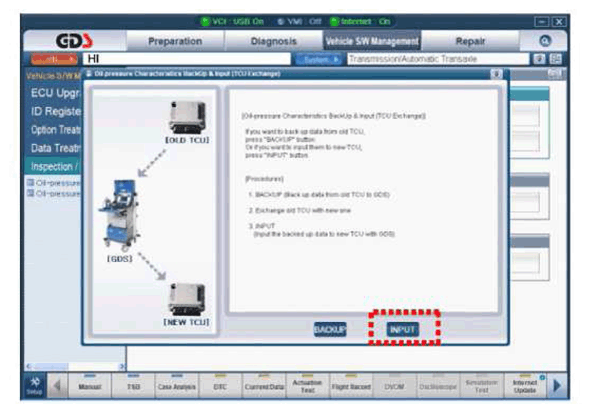

Fig 9: Screen Display - Oil-Pressure Characteristics Backup And Input (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

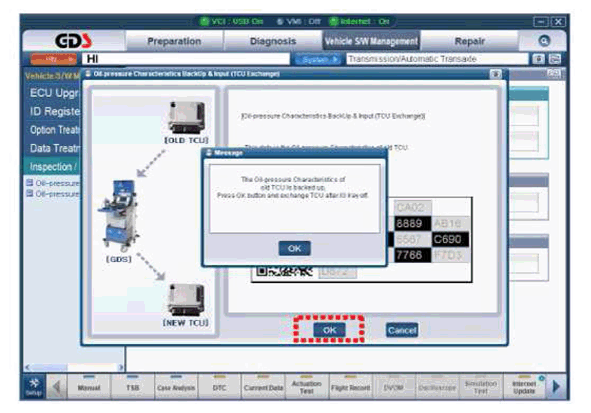

• Perform "Oil-Pressure Characteristics Backup" procedure.

Fig 10: Screen Display - Oil-Pressure Characteristics Backup And Procedure (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Screen Display - Oil-Pressure Characteristics Backup And Procedure (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

• Perform "Oil-Pressure Characteristics Input" procedure.

Fig 12: Screen Display - Oil-Pressure Characteristics Input And Procedure (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 13: Screen Display - Oil-Pressure Characteristics Input And Procedure (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 14: Screen Display - Oil-Pressure Characteristics Input And Procedure (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA
