Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

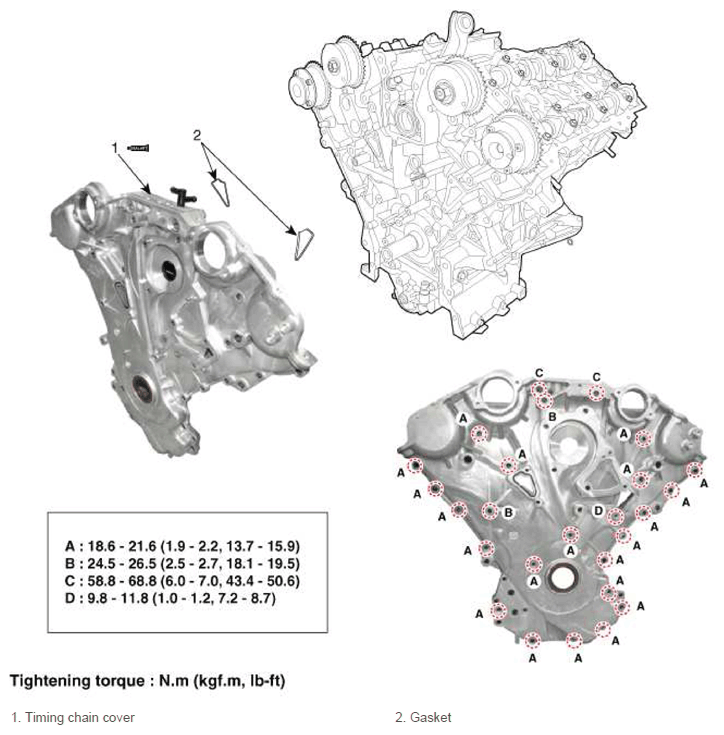

Fig 1: Locating Timing Chain Cover Bolts With Torque Specifications
G11411507Courtesy of HYUNDAI MOTOR AMERICA
