Section 473 (Smart Cruise Control System)
>>
Smart Cruise Control Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

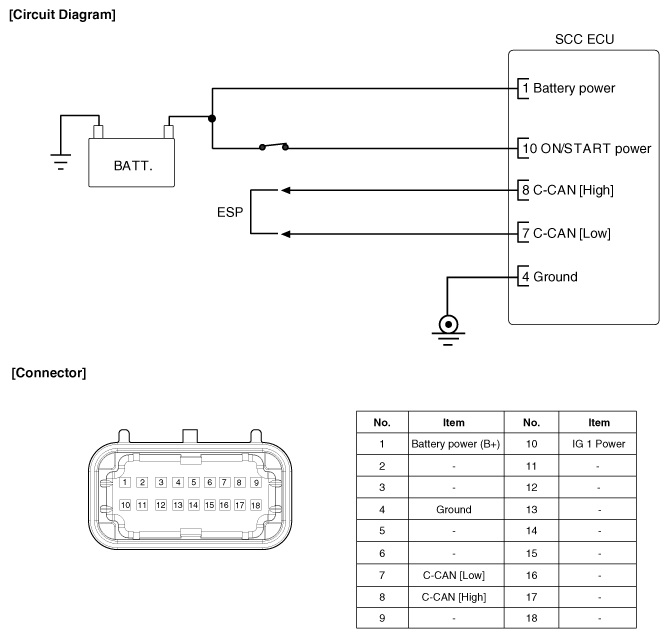

Fig 1: Smart Cruise Control Unit
Courtesy of KIA MOTORS AMERICA, INC.
