Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cowl side trim.

    (Proceed to Body - "COWL SIDE TRIM ")

  3. To remove the crash pad under cover [RH] (A), press both sides of the locking pin and then pull it down in the direction of the arrow.
    Fig 1: Pressing Locking Pin
    G11804334Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the under lamp connector (A).
    Fig 2: Locating Under Lamp Connector
    G11804335Courtesy of KIA MOTORS AMERICA, INC.
  5. Unscrew the mounting screws and then remove the control unit (A).

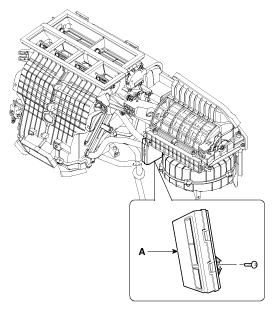

    Fig 3: Locating Control Unit With Mounting Screw
    G11804336Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
