Control Panel
WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
Component

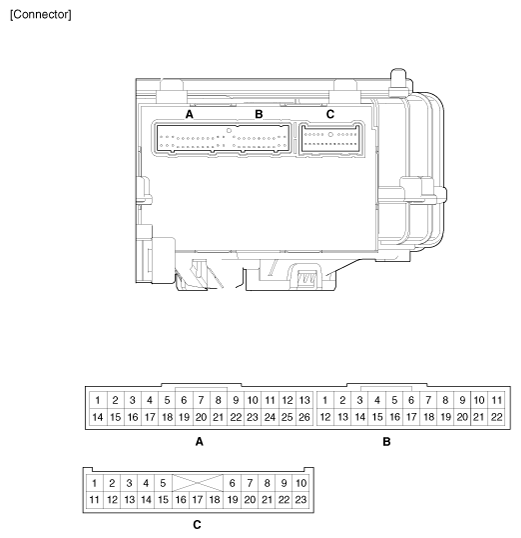

CONNECTOR PIN FUNCTION
| Pin No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | Vref (5V) | Ignition 2 |
| 2 | Battery (+) | - | LED STR (Left) |
| 3 | ECV (+) | Ambient Temperature Sensor | LED STR (Right) |
| 4 | Rear Mode Actuator (Vent) | In-Car Sensor | TX1, Key CLK |
| 5 | Rear Mode Actuator (Defrost) | Evaporator Temperature Sensor | RX1, Key SH/LD |
| 6 | K-Line | Defog SCK | - |
| 7 | Key Data (Left) | Defog Data | - |
| 8 | Key Data (Right) | Defog Temperature | ION Signal |
| 9 | CAN Low (CS) | Power Mosfet (Gate) | CLEAN Signal |
| 10 | CAN High (CS) | Power Mosfet (Drain) | Diagnosis (Ionizer) |
| 11 | - | Sensor Ground | LED CLK |
| 12 | ECV (-) | Blower Motor (+) | LED Data |
| 13 | - | Front Driver's Temperature Control Actuator (Cool) | Rear Control (K-Line) |
| 14 | Ignition 1 | Front Driver's Temperature Control Actuator (Warm) | LED Dimming |
| 15 | - | Driver's side Photo (-) | Auto Defogging Actuator (Open) |
| 16 | Front Passenger Temperature Control Actuator (Cool) | Passenger's side Photo (-) | Auto Defogging Actuator (Close) |
| 17 | Front Passenger Temperature Control Actuator (Warm) | In-Car Motor (-) | Auto Defogging Actuator Feedback |
| 18 | Front Passenger Temperature Actuator Control Feedback | Front Driver's Temperature Control Actuator Feedback | Rear Driver's Temperature Control Actuator (Cool) |
| 19 | Front Mode Control Actuator (Vent) | Console Sensor | Rear Driver's Temperature Control Actuator (Warm) |
| 20 | Front Mode Control Actuator (Defrost) | - | Rear Driver's Temperature Control Actuator Feedback |
| 21 | Front Mode Control Actuator Feedback | - | - |
| 22 | Intake Actuator (Fresh Air) | - | - |
| 23 | Intake Actuator (Recirculated Air) | Ground | |
| 24 | Intake Actuator Feedback | ||
| 25 | Rear Mode control Actuator Feedback | ||
| 26 | Ground |
