Components and Components Location: Component
WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

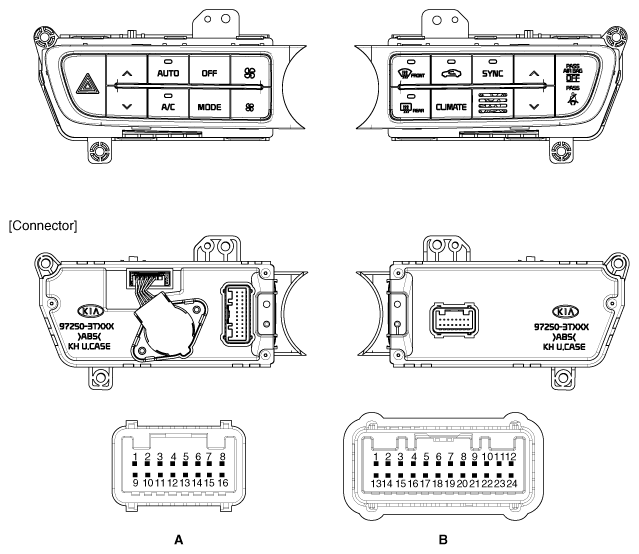

CONNECTOR PIN FUNCTION
| Connector | Pin No. | Function | Connector | Pin No. | Function |
|---|---|---|---|---|---|
| A | 1 | Ignition 2 | B | 1 | Ignition 2 |
| 2 | Tail Lamp (+) | 2 | Tail Lamp (+) | ||
| 3 | Detent | 3 | Ignition 1 | ||
| 4 | TX1, Key CLK | 4 | - | ||
| 5 | RX1, Key SH/LD | 5 | - | ||
| 6 | Hazard Switch | 6 | IN-CAR SENSOR | ||
| 7 | Rheostat (-) | 7 | LED CLK | ||
| 8 | Ground | 8 | LED Data | ||
| 9 | Key Data (Left) | 9 | LED STR (Right) | ||
| 10 | LED CLK | 10 | LED Dimming | ||
| 11 | LED Data | 11 | Rheostat (-) | ||
| 12 | LED STR (Left) | 12 | Ground | ||
| 13 | LED Dimming | 13 | Detent | ||
| 14 | - | 14 | Key Data (Right) | ||
| 15 | - | 15 | - | ||
| 16 | - | 16 | IN-CAR MOTOR (-) | ||
| 17 | Rear Defog Switch | ||||
| 18 | Rear Defog Indicator | ||||
| 19 | PAB SIGNAL | ||||
| 20 | SBR SIGNAL | ||||
| 21 | TX1, Key CLK | ||||
| 22 | RX1, Key SH/LD | ||||
| 23 | PAB_IG1- | ||||
| 24 | SENSOR GND |
