Monitor GDS Data

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF"
  2. Refer to "FRONT/REAR PARKING ASSIST SYSTEM " and remove necessary parts to get access to Front Left PAS Sensor connector.
  3. Ignition "ON"
  4. Back probe and measure signal waveform between Pin No. 1 (LIN) terminal of Front Left PAS sensor harness connector and chassis ground.

    Specification:  Refer to Fig 1 below

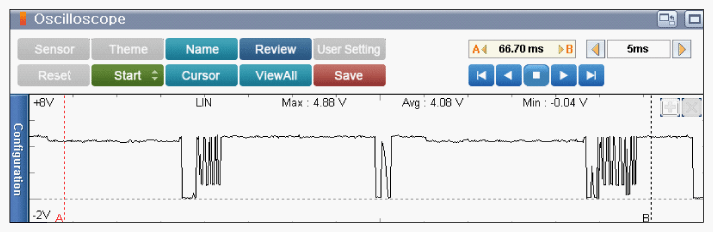

    Fig 1: Display - Normal LIN Communication Signal Waveform Screen
    G11857378Courtesy of KIA MOTORS AMERICA, INC.
  5. Is measured value within specification?

    YES

    NO
