Section 301 (Audio System)
>>
Troubleshooting
>>
Chart 2
Chart 2
WARNING:
This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

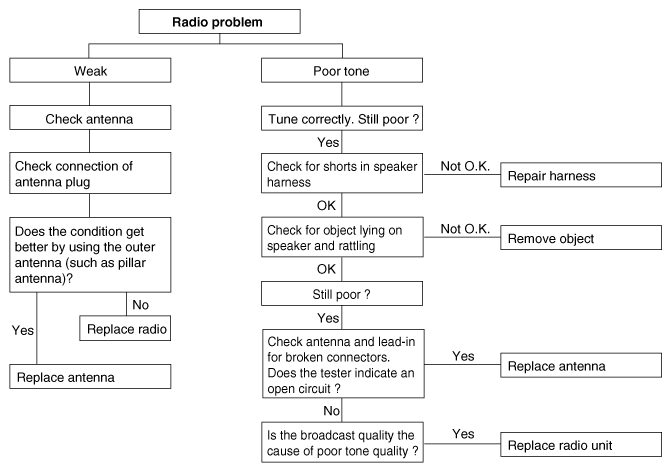

Fig 1: Troubleshooting Problem Area Chart 2 (Radio)
Courtesy of KIA MOTORS AMERICA, INC.
