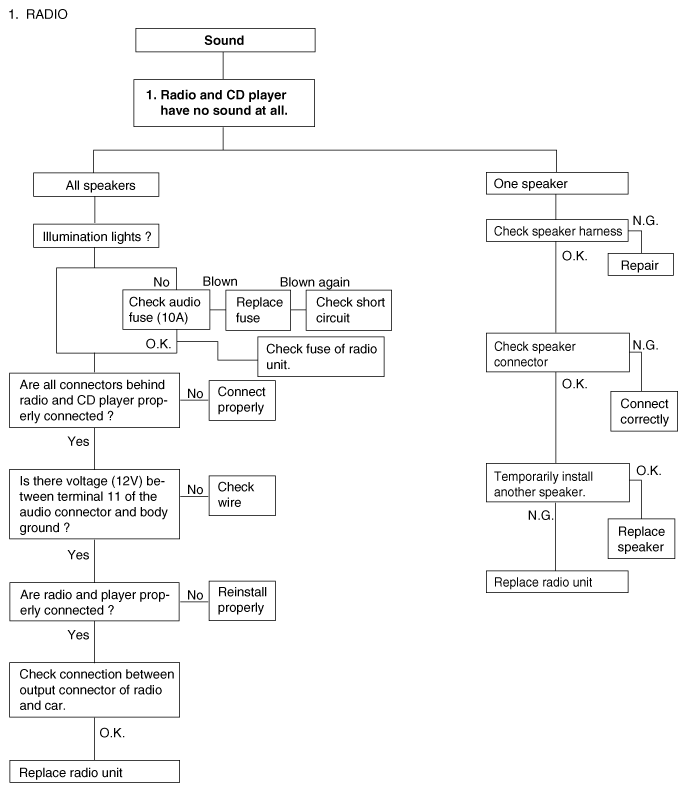

Fig 1: Troubleshooting Problem Area Chart 1 (Radio)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Troubleshooting Problem Area Chart 1 (CD Player)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Troubleshooting Problem Area Chart 1 (Speaker; 1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Troubleshooting Problem Area Chart 1 (Speaker; 2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
