Smart Cruise Control System

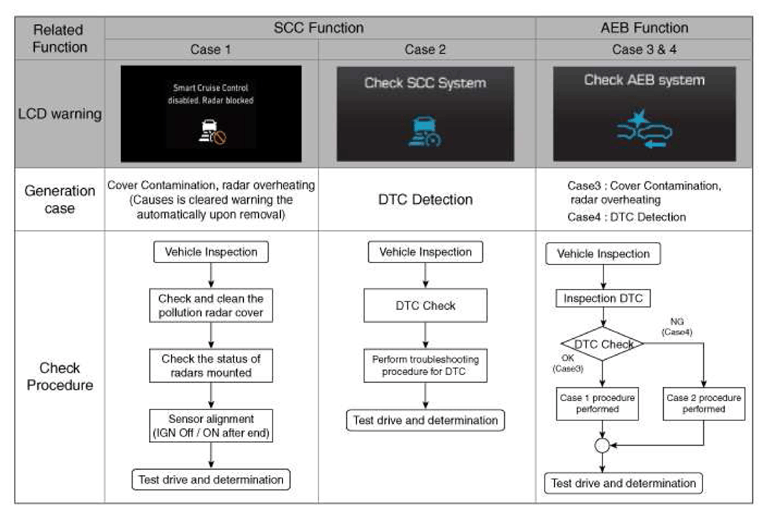

Fig 1: Smart Cruise Control System Flow Chart
G11403772Courtesy of HYUNDAI MOTOR AMERICA
