Rear Memory Power Seat Module (RLPSM)

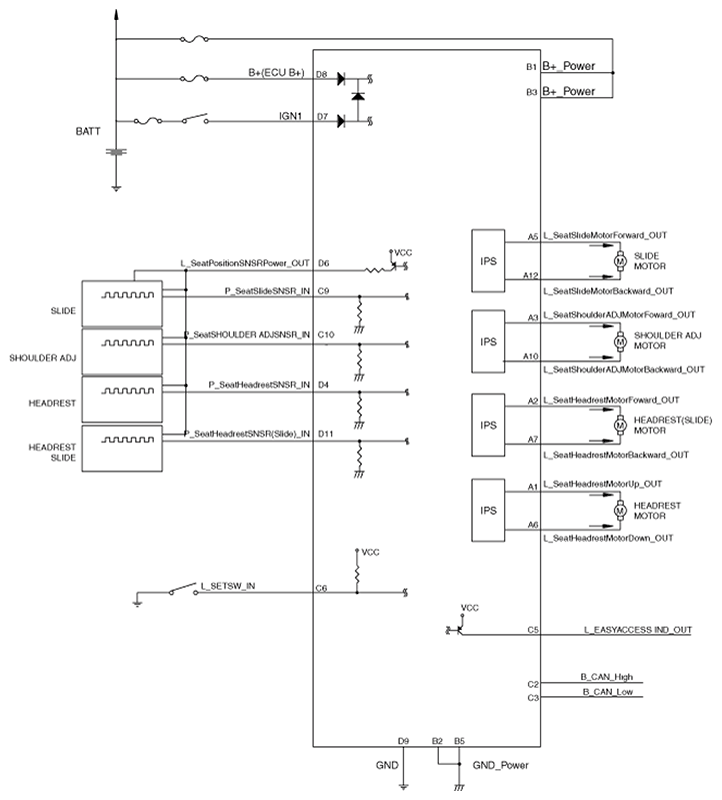

Fig 1: Rear Memory Power Seat Module (RLPSM) Circuit Diagram

G11406120

Courtesy of HYUNDAI MOTOR AMERICA
