Driver Memory Power Seat Module (DPSM)

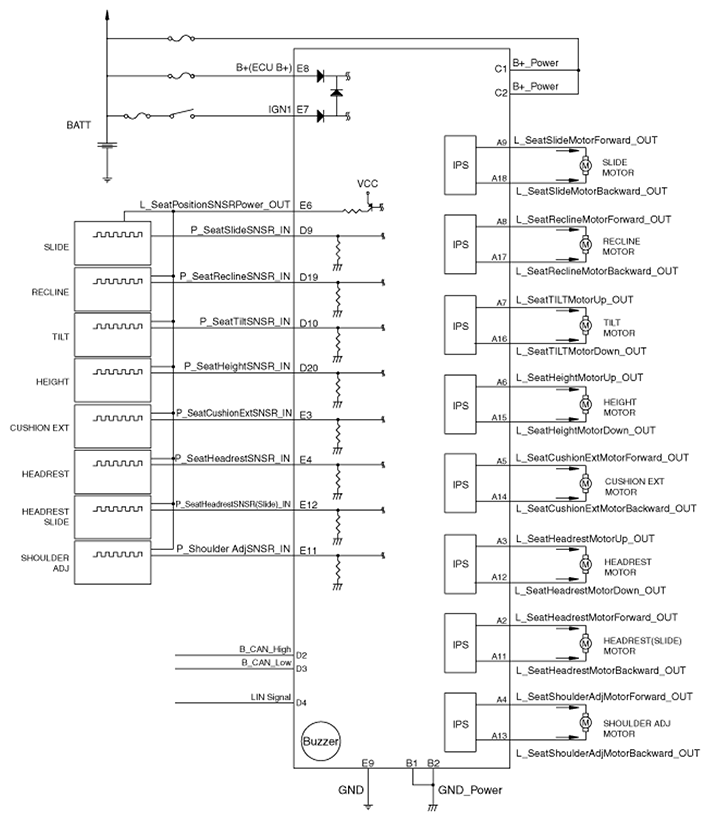

Fig 1: Driver Memory Power Seat Module (DPSM) Circuit Diagram

G11406118

Courtesy of HYUNDAI MOTOR AMERICA
