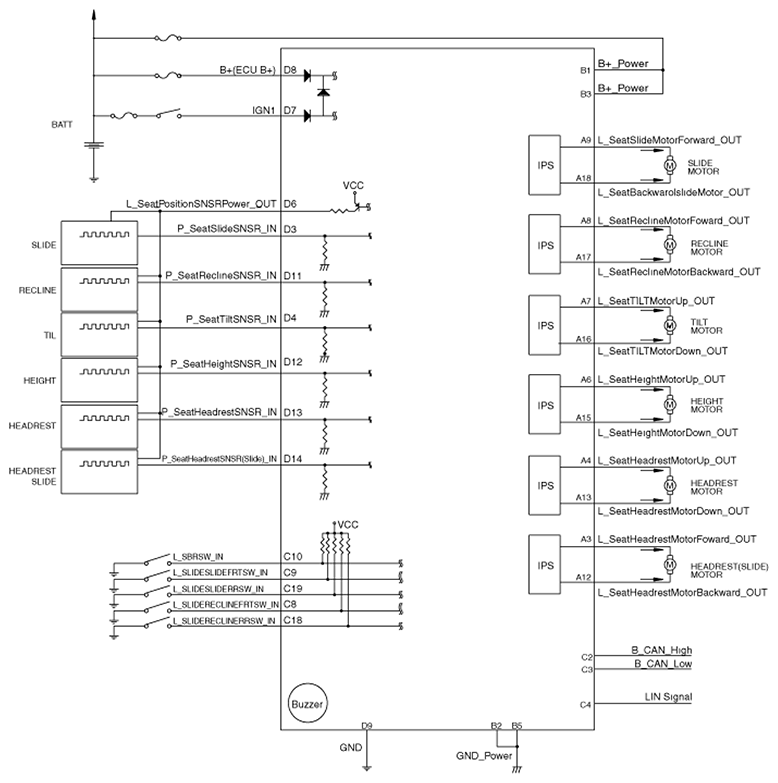

Home >> Genesis >> 2017 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Integrated Memory System (IMS) >> Memory Power Seats Unit >> Schematic Diagrams >> Circuit Diagram >> Assist Memory Power Seat Module (APSM)
