Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Remove the front seat shield outer cover.
(Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")
Remove the front seat shield inner cover.
(Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

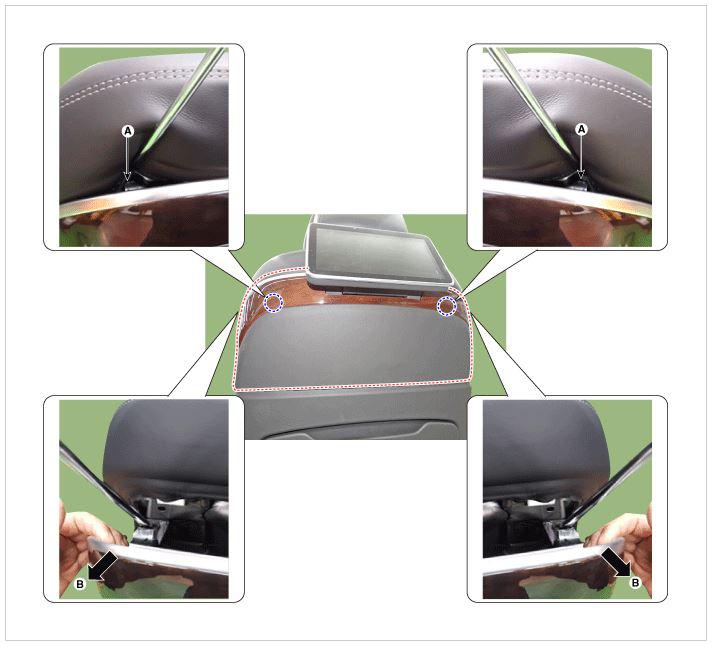

Using a screwdriver or remover, remove the front seat upper back board (A).
1. Using a screwdriver to press the fixing pin.
2. Pull out the sheet by hand.
Fig 1: Front Seat Back Cover Fixing Pins
Courtesy of HYUNDAI MOTOR AMERICA

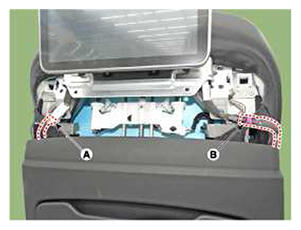

Disconnect the rear monitor connector (A) and rear monitor cable (B).

Fig 2: Locating Rear Monitor Connector And Rear Monitor Cable
Courtesy of HYUNDAI MOTOR AMERICA

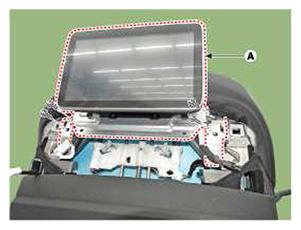

After loosening the mounting bolts, remove the rear monitor assembly (A).

Fig 3: Removing Rear Monitor Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

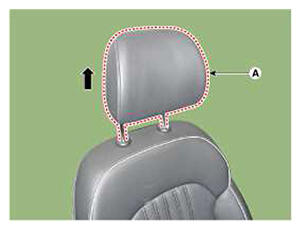

Remove the headrest (A).

Fig 4: Removing Headrest
Courtesy of HYUNDAI MOTOR AMERICA

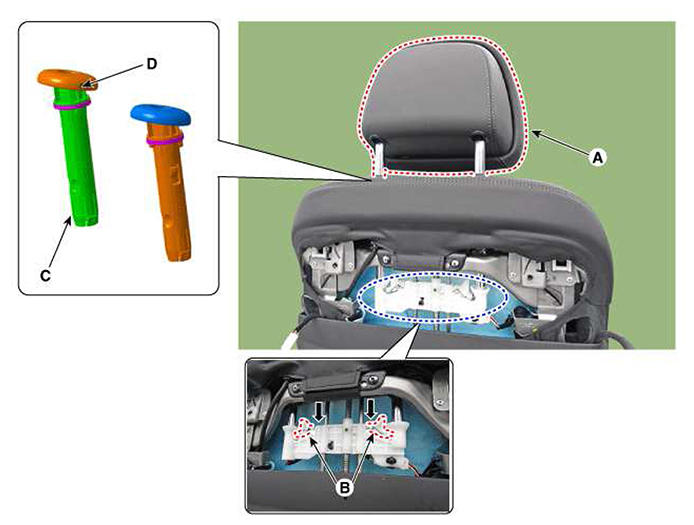

How to Remove the Headrest
1. Push the mounting clip (B) of the headrest in the direction of the arrow.
2. Release the "LOCK" state by inserting the sharp-pointed tool into the hole (D) located at the upper side of the headrest guide (C) and then remove the headrest (A) in the direction of the arrow.
Fig 5: Pushing Mounting Clip Of Headrest
Courtesy of HYUNDAI MOTOR AMERICA

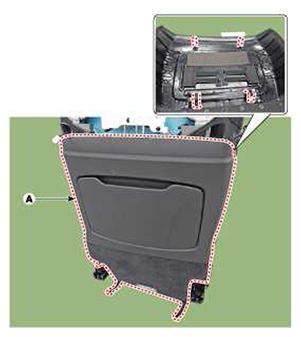

Remove the front seat lower back board (A).
NOTE:
- Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
- Be careful not to damage the fixing clips.
Fig 6: Locating Front Seat Lower Back Board
Courtesy of HYUNDAI MOTOR AMERICA

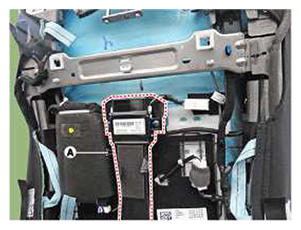

Disconnect the front seat back board connector (A).

Fig 7: Locating Front Seat Back Board Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat air ventilation seat back duct (A).

Fig 8: Locating Front Seat Air Ventilation Seat Back Duct
Courtesy of HYUNDAI MOTOR AMERICA

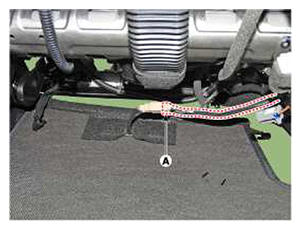

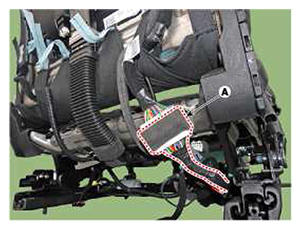

Disconnect the connector (A).

Fig 9: Locating Front Seat Connector
Courtesy of HYUNDAI MOTOR AMERICA

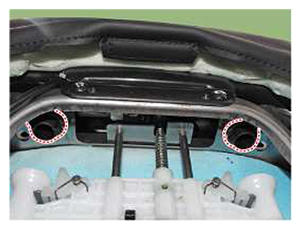

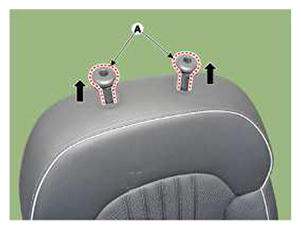

Using a screwdriver or remover, remove the front seat headrest guides (A) by pulling them upwards.

Fig 10: Front Seat Headrest Guides
Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Removing Front Seat Headrest Guides
Courtesy of HYUNDAI MOTOR AMERICA
Remove the protector (A) from the front seat back frame.

Fig 12: Locating Protector Of Front Seat Back Frame
Courtesy of HYUNDAI MOTOR AMERICA

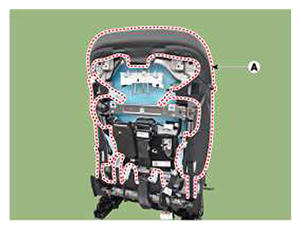

Remove the front seat back cover assembly (A) from the front seat back frame.

Fig 13: Locating Front Seat Back Cover Assembly
Courtesy of HYUNDAI MOTOR AMERICA

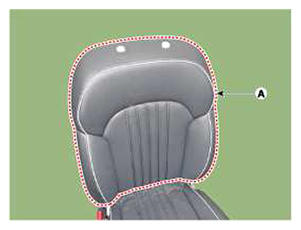

After removing the Velcro tape (A) and hog-ring clips (B) on the front of seat back and remove the front seat back cover (C).
CAUTION:
- Make sure that the sponge insert wire is not dislocated.
Fig 14: Locating Velcro Tape On Front Of Seat Back
Courtesy of HYUNDAI MOTOR AMERICA

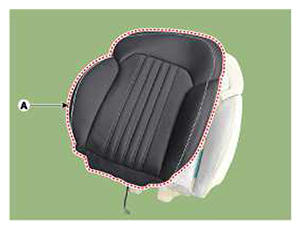

Remove the front seat back cover (A) from the front seat back pad.

Fig 15: Locating Front Seat Back Cover
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure that the connectors are connected completely
- Replace any damaged clips.

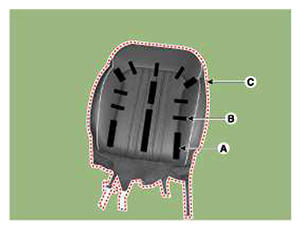

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
Fig 16: Installing Hog-Ring Clips Using Special Tool
Courtesy of HYUNDAI MOTOR AMERICA
