Home >> Genesis >> 2017 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual/Navigation (AVN) System >> AVN (Audio Video Navigation) Head Unit >> Components and Components Location >> Components

Components and Components Location: Components

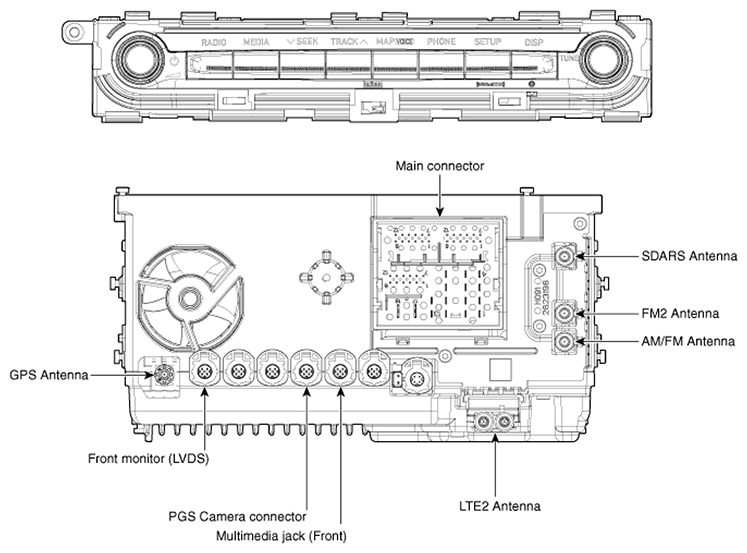

Fig 1: Locating AVN (Audio Video Navigation) Head Unit Components

G11405973

Courtesy of HYUNDAI MOTOR AMERICA
