Signal Waveform & Data

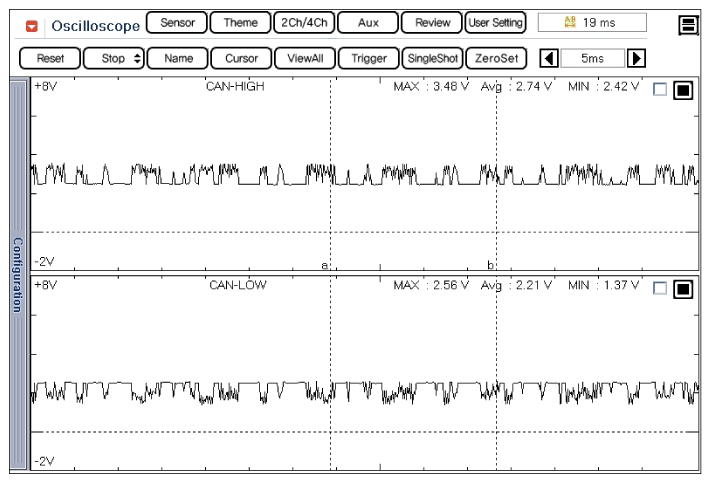

Fig 1: Screen Display - C-CAN Communication Normal Waveform

G11411269

Courtesy of HYUNDAI MOTOR AMERICA
