Components And Components Location: Components

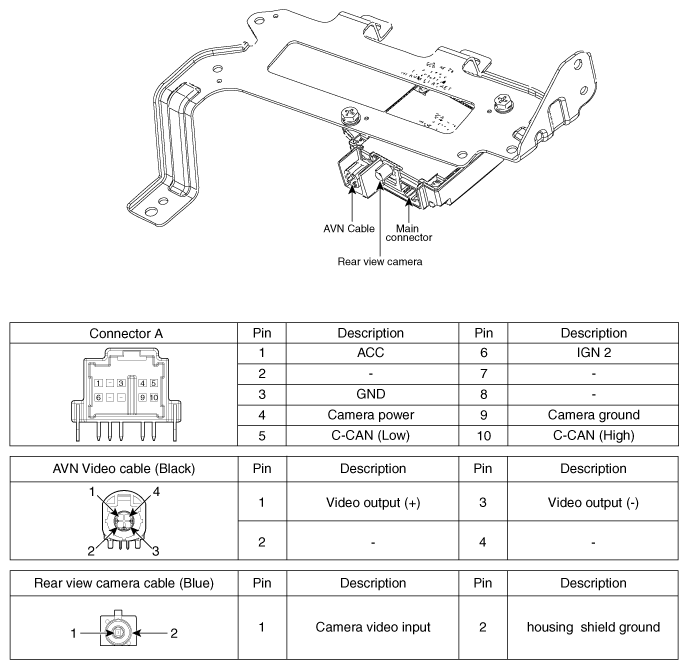

Fig 1: Camera Interface Unit Connector Terminals

G11419848

Courtesy of HYUNDAI MOTOR AMERICA
