Component Location

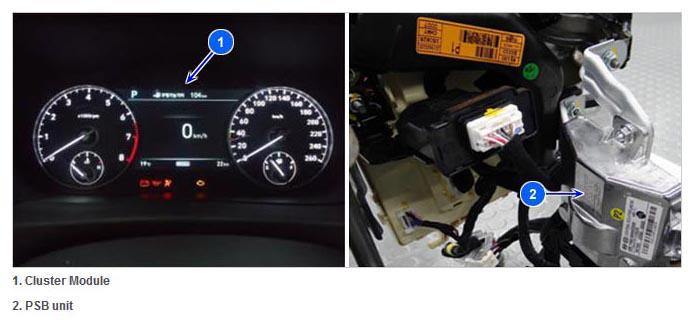

Fig 1: Locating Cluster Module And PSB Unit Components
G11410371Courtesy of HYUNDAI MOTOR AMERICA
NOTE: Cluster:  "INSTRUMENT CLUSTER"
PSB (Pre Active Seat Belt Unit):  "PRE ACTIVE SEAT BELT UNIT"
